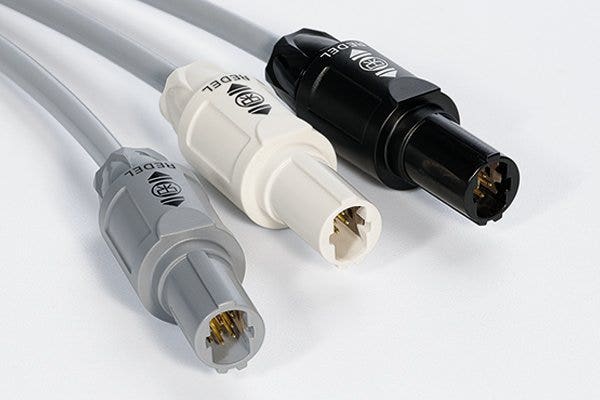

REDEL SP - Inner Push-Pull
Highly configurable plastic connector with inner Push-Pull
Main Features
- Indoor/protected and outdoor environments
- Inner Push-Pull patented latching system
- Keying system & color coding
- Light & proprietary PPSU material
- Chemical and sterilization resistant
Reliable High quality and performance interconnect solutions
Modular and custom made complete solutions
Worldwide presence with local experts, stock management and cable assembly everywhere
Form & Material
- Environment
- Broad medical approved high quality plastic (PPSU) circular connector range for both indoor/protected and outdoor environments (IP50 & IP68)
- Latching system
- Inner Push-Pull patented latching system enabling simple/quick yet safe and reliable frequent connect and disconnect, but also greater shock resistance and easier clenability.

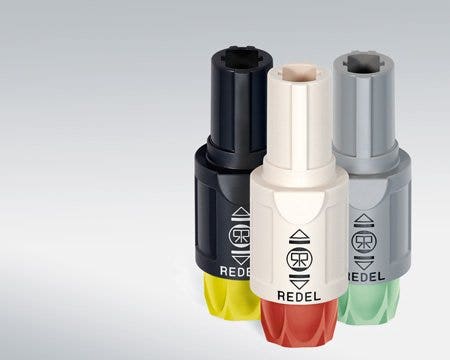

- Keying system
- Keying system allowing for a high contact density, with multiple key and color options to prevent mismating
- Construction
- Field proven light & compact construction, outer shell in proprietary sulfone PPSU material (FDA approved) enabling extensive sterilisation cycles and high chemical resistance.
- Ergonomy
- Ergonomic and scoop proof design
- Size and model
- Various models, modular concept (inversed polarity)
Electrical configurations
- Insert configurations
- Large selection of insert configurations including high-density low voltage and high voltage contacts
- Design
- Qualified for electrostatic discharge protected designs: IEC 60601-1 (15kV)
Suitable applications
REDEL
Use the table to compare the 3 main series within the REDEL connector family and to identify the connector(s) best adapted to your specific requirements.
| Description | Description Highly configurable plastic Push-Pull connector | Description Highly configurable plastic connector with inner Push-Pull | Description Modular plastic connectors |
| Locking | Locking Push-Pull | Locking Inner Push-Pull | Locking Inner Push-Pull |
| Size | Size 3 sizes from ø 14.0 to ø 21.2 mm (plugs) | Size 1 size ø 15.5 mm (plugs) | Size 1 size ø 24.4 mm (plug) |
| Keying | Keying 6 keyway + 7 colour options | Keying 4 keyway + 7 colour options | Keying 4 keyway + 4 colour options |
| Shell Type | Shell Type Over 12 shell styles | Shell Type Over 8 shell styles | Shell Type Over 6 shell styles |
| Shell Material | Shell Material PEI / PSU | Shell Material PPSU | Shell Material PPSU |
| Plating | Plating - | Plating - | Plating - |
| Cable Diameter | Cable Diameter 2.7 to 9.5 mm | Cable Diameter 2.5 to 7.5 mm | Cable Diameter Module selection dependent |
| NB of contact | NB of contact 2 to 34 | NB of contact 4 to 22 | NB of contact 5 to 144 |
| AWG | AWG 12 to 32 mm | AWG 18 to 32 mm | AWG 20 to 32 |
| Contact types | Contact types Multipole • Coax • Fibre Optic • Fluidic High Voltage • Mixed • Thermocouple | Contact types Multipole | Contact types Multipole • Coax • Fibre Optic • Fluidic • Hybrid |
| Contact Termination | Contact Termination Solder / Crimp / Print (PCB) | Contact Termination Solder / Crimp / Print (PCB) | Contact Termination Solder / Crimp / Print (PCB) |
| Sterilization | Sterilization Steam / ETO / Gamma | Sterilization Steam / ETO | Sterilization Steam / ETO |
| Sealing level | Sealing level IP50 / IP66 | Sealing level IP50 | Sealing level IP50 |
| Temperature range | Temperature range -55°C to 170°C | Temperature range -50°C to 170°C | Temperature range -50°C to 170°C* |
| * with all modules except PCB modules | |||
| Mating Cycles | Mating Cycles > 1000 | Mating Cycles > 2000 | Mating Cycles > 2000 |
REDEL SP - Inner Push-Pull

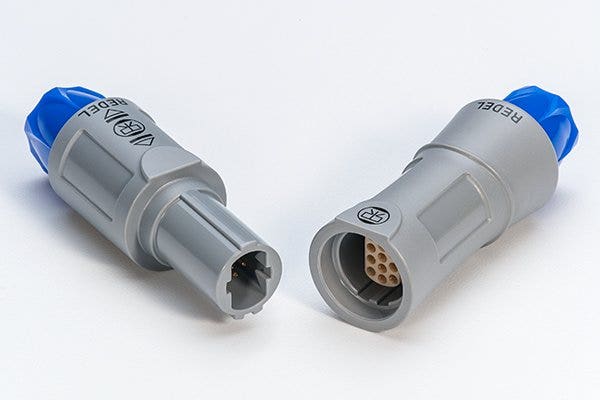

The medically approved REDEL® SP series comprises modular, high quality plastic (PPSU), sterilisable connectors designed for indoor/protected and outdoor environments (IP50 and IP68). Constructed of lightweight, durable and proprietary materials, the SP series has high resistance to chemicals, greater shock resistance and is more easily cleaned. Multiple keys and colour options prevent mis-mating and the patented Push-Pull latching system is simple and quick, yet safe, cleanable and reliable for frequent connection/disconnection. A large selection of insert configurations including high-density low voltage and high voltage contacts is available in a variety of sizes and models.
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Solder
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Solder
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 4.00 - 5.20 mm
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Solder
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 2.50 - 3.90 mm
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 6.60 - 7.50 mm
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 4.00 - 5.20 mm
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 2.50 - 3.90 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 4.00 - 5.20 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 6.60 - 7.50 mm
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 6.60 - 7.50 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 4.00 - 5.20 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 2.50 - 3.90 mm
