REDEL P - Push-Pull
Highly configurable plastic Push-Pull connector
Main Features
- Indoor/protected environments (IP50/IP64)
- Push-Pull latching system
- Keying system & color coding
- Light & fully sterilizable construction
- Disposable included
Reliable High quality and performance interconnect solutions
Modular and custom made complete solutions
Worldwide presence with local experts, stock management and cable assembly everywhere
Form & Material
- Environment
- Broad medical approved high quality plastic (PEI, PSU) circular connector range for indoor/protected environments (IP50/IP64)
- Latching system
- Push-Pull latching system enabling simple/quick yet safe and reliable frequent connect and disconnect
- Keying system
- Keying system allowing for a high contact density, with multiple key and color options to prevent mismating
- Construction
- Field proven light & compact construction, fully sterilizable
- Ergonomy
- Ergonomic design
- Size and model
- Various sizes and models including disposable and water-resistant models
Electrical configurations
- Insert configurations
- Large selection of insert configurations including high-density low voltage, high voltage, coaxial and fluidic contacts as well as hybrid solutions
- Design
- Qualified for electrostatic discharge protected designs: IEC 60601-1 (15kV)
20 Oct 2023
REDEL P series catalog
20 Oct 2023

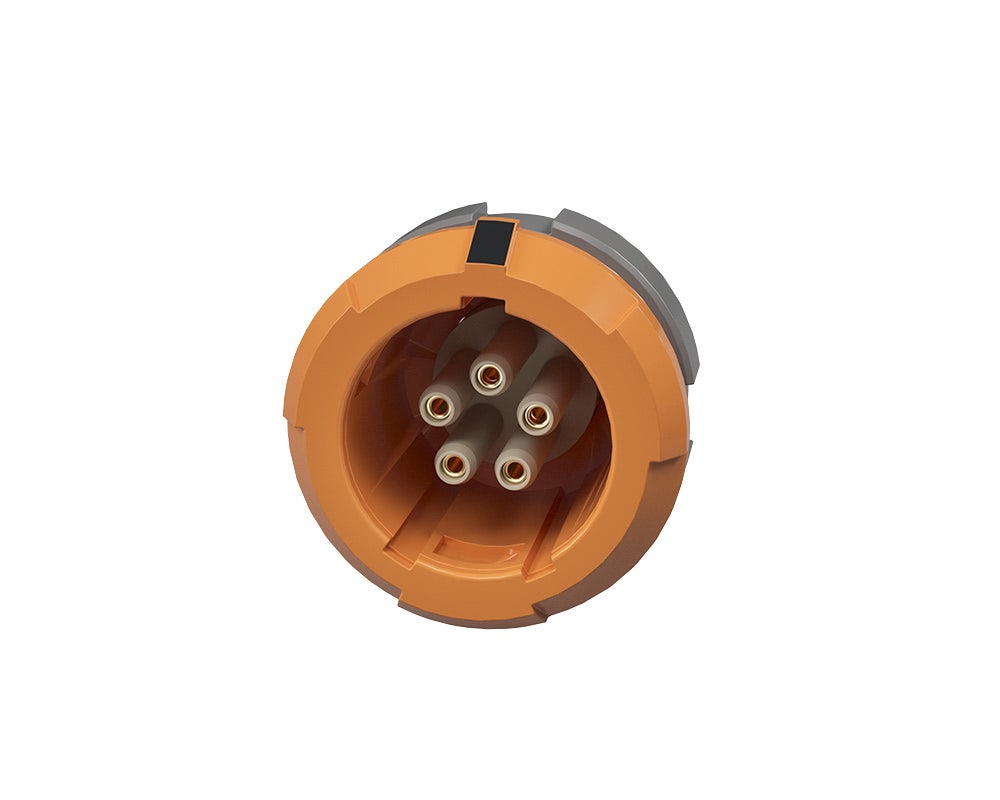

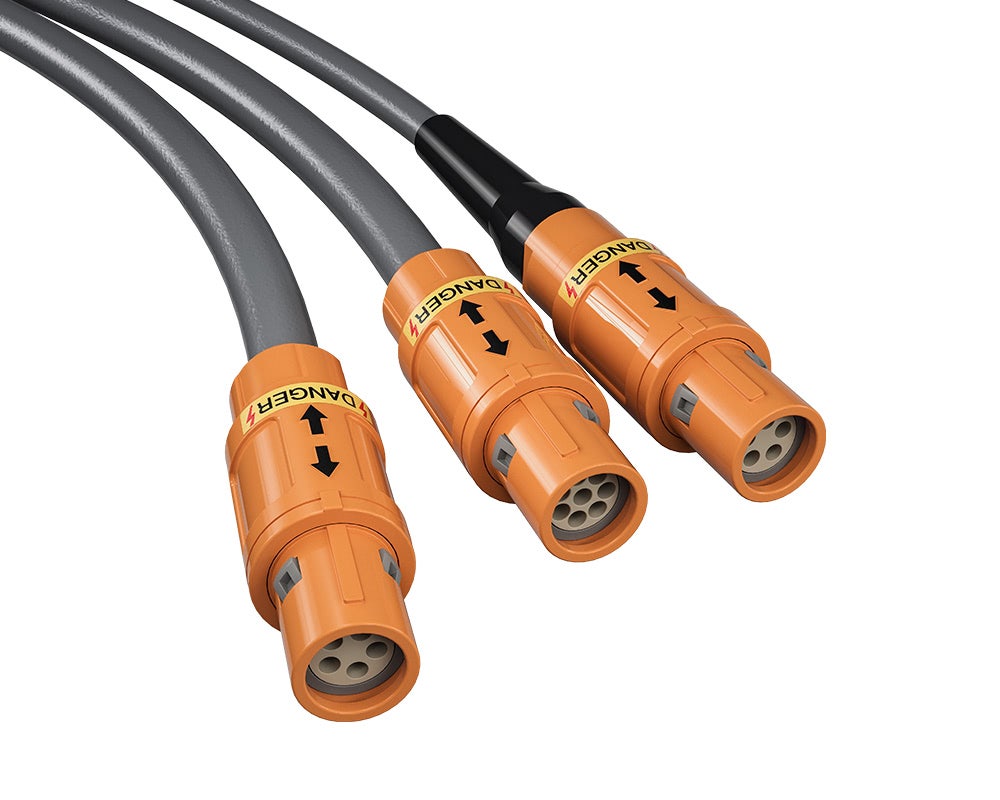

Product brief - REDEL 2P High Voltage
20 Oct 2023
Connector selection guide eng
20 Oct 2023
Flyer PGG en
20 Oct 2023
REDEL single use connector
REDEL
Use the table to compare the 2 main series within the REDEL connector family and to identify the connector(s) best adapted to your specific requirements.
| Description | Description Highly configurable plastic Push-Pull connector | Description Highly configurable plastic connector with inner Push-Pull |
| Locking | Locking Push-Pull | Locking Inner Push-Pull |
| Size | Size 3 sizes from ø 14.0 to ø 21.2 mm (plugs) | Size 1 size ø 15.5 mm (plugs) |
| Keying | Keying 6 keyway + 7 colour options | Keying 4 keyway + 7 colour options |
| Shell Type | Shell Type Over 12 shell styles | Shell Type Over 8 shell styles |
| Shell Material | Shell Material PEI / PSU | Shell Material PPSU |
| Plating | Plating - | Plating - |
| Cable Diameter | Cable Diameter 2.7 to 9.5 mm | Cable Diameter 2.5 to 7.5 mm |
| NB of contact | NB of contact 2 to 34 | NB of contact 4 to 22 |
| AWG | AWG 12 to 32 mm | AWG 18 to 32 mm |
| Contact types | Contact types Multipole • Coax • Fibre Optic • Fluidic High Voltage • Mixed • Thermocouple | Contact types Multipole |
| Contact Termination | Contact Termination Solder / Crimp / Print (PCB) | Contact Termination Solder / Crimp / Print (PCB) |
| Sterilization | Sterilization Steam / ETO / Serris / Gamma | Sterilization Steam / ETO / Serris / Gamma |
| Sealing level | Sealing level IP50 / IP66 | Sealing level IP50 |
| Temperature range | Temperature range -55°C to 170°C | Temperature range -50°C to 170°C |
| Mating Cycles | Mating Cycles > 1000 | Mating Cycles > 2000 |

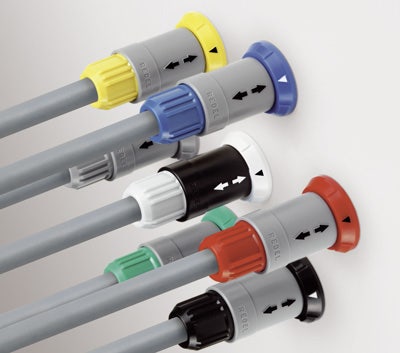

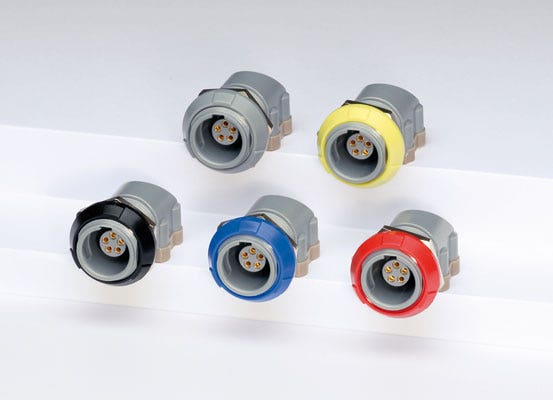

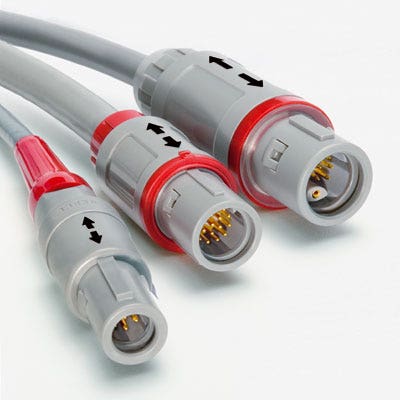

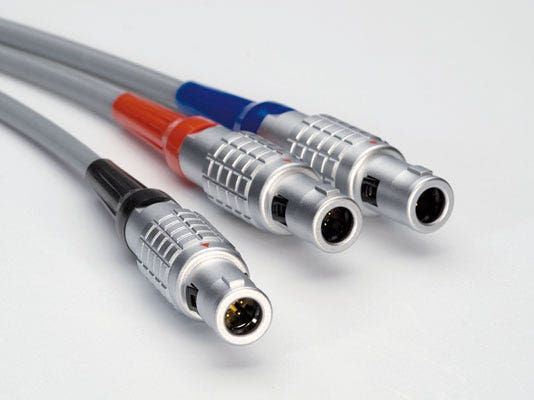

REDEL P - Push-Pull
With the medical sector in mind, the REDEL® P series offers high quality plastic (PEI, PSU), sterilisable connectors designed for indoor and protected environments. Multiple keys and colour coding allow for high contact density and prevent mis-mating. The Push-Pull latching system is simple and quick, yet safe and reliable for frequent connection/disconnection. The ergonomic design has been field tested and is medically approved. A large selection of insert configurations (high-density low voltage, high voltage, coaxial, fluidic, and hybrid) are available, as are disposable and water-resistant (IP64) models.
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Solder
- Wire Size/AWG
- 32 - 24
- Jacket cable outside diameter [mm]
- 4.00 - 5.20 mm
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Solder
- Wire Size/AWG
- 32 - 24
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 2
- Termination
- Solder
- Wire Size/AWG
- 28 - 20
- Jacket cable outside diameter [mm]
- 4.00 - 5.20 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Solder
- Wire Size/AWG
- 32 - 24
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Solder
- Wire Size/AWG
- 32 - 24
- Jacket cable outside diameter [mm]
- 4.00 - 5.20 mm
- Plug
- Straight
- Nb of contacts
- 7
- Termination
- Solder
- Wire Size/AWG
- 32 - 24
- Jacket cable outside diameter [mm]
- 0.00 - 0.00 mm
- Plug
- Straight
- Nb of contacts
- 7
- Termination
- Solder
- Wire Size/AWG
- 32 - 24
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Solder
- Wire Size/AWG
- 32 - 24
- Jacket cable outside diameter [mm]
- 0.00 - 0.00 mm
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 4.00 - 5.20 mm
- Plug
- Straight
- Nb of contacts
- 5
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 5
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 5.30 - 6.50 mm
- Plug
- Straight
- Nb of contacts
- 5
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 2.70 - 3.90 mm
- Plug
- Straight
- Nb of contacts
- 2
- Termination
- Crimp
- Wire Size/AWG
- 20 - 18
- Jacket cable outside diameter [mm]
- 4.00 - 5.20 mm
- Plug
- Straight
- Nb of contacts
- 2
- Termination
- Crimp
- Wire Size/AWG
- 20 - 18
- Jacket cable outside diameter [mm]
- 2.70 - 3.90 mm
