LEMO micro miniature 50 Ohms Coaxial connectors
Miniature circular connector
Indoor/ protected environments (IP50)
Push-Pull latching system
Coaxial contact configurations
Main Features
Miniature circular connector
Indoor/ protected environments (IP50)
Push-Pull latching system
Coaxial contact configurations
Reliable High quality and performance interconnect solutions
Modular and custom made complete solutions
Worldwide presence with local experts, stock management and cable assembly everywhere

Form & Material

Broad metallic & plastic high quality miniature circular connector range for indoor/protected environments (IP50)
Latching system
Push-Pull latching system enabling simple/quick yet safe and reliable frequent connect and disconnect
Field proven solid & compact construction
Ergonomic design thanks to knurled pattern
Size and model
Various sizes and models including elbow plugs, watertight and vaccumtight models

Electrical configurations

Contact configuration
Large selection of coaxial contact configurations
360° screening for full EMC shielding
icon pdf
Solutions Selection Guide
icon pdf
00 and 01 coaxial series (Nim Camac)
icon pdf
Cable assembly for non destructive testing
Use the table to see the 2 main series within the SPECIALTIES connector family and to identify the connector(s) best adapted to your specific requirements.
3K.93C.Y - SMPTE Hybrid

3K.93C.Y - SMPTE Hybrid

See more details


See more details
Description Description The standard for high-definition TV (SMPTE 304). Robust hybrid fiber optic connector guarenteeing certified signal integrity. Description 00 series: Coaxial 50 Ω self-latching connectors, the basis of the NIM-CAMAC standard. 01 series: Smallest self-latching coaxial 50 Ω connectors.
Locking Locking Push-Pull Locking Push-Pull
Size Size 1 size ø 19.5 mm (plugs) Size 2 sizes from ø 5.0 to ø 6.4 mm (plugs)
Keying Keying 1 keyway Keying No keying (Coax)
Shell Types Shell Types Over 11 shell style Shell Types Over 40 shell styles
Shell Material Shell Material Stainless steel or Brass Shell Material Brass
Plating Plating Chrome on brass version Plating Nickel, Chrome or Gold
Cable Diameter Cable Diameter 8.9 to 9.5 mm Cable Diameter 1.1 to 5.5 mm
NB of contact NB of contact 2 FO / 2 signal / 2 power & ground NB of contact Coax 50Ω
AWG AWG 14 to 24 AWG 26
Contact types Contact types Multipole • Fibre Optic High Voltage Contact types Coax 50Ω
Contact Termination Contact Termination Crimp Contact Termination Solder / Crimp / Print (PCB)
Standard Standard SMPTE 304 & equivalent Standard
Sealing Level Sealing Level IP68 Sealing Level IP50 / hermetic sockets
Temperature Range Temperature Range -40°C to 80°C Temperature Range -55°C to 260°C
Mating Cycles Mating Cycles > 20000 Mating Cycles 00 > 5000 / 01 > 1000

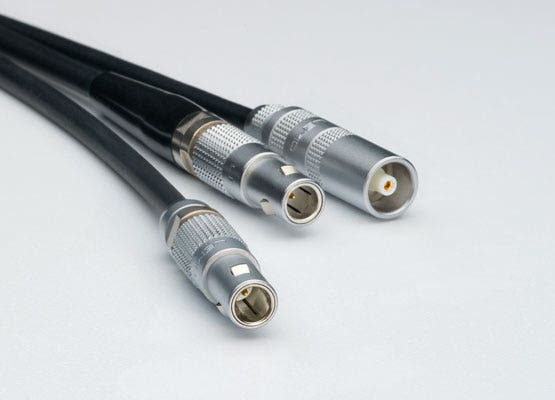

The miniature 00 and 01 series offer an extensive selection of configurations for coaxial contacts which meet the NIM and CAMAC standards. Designed for indoor and protected environments (IP50), the Push-Pull latching system is efficient, reliable and safe. The ergonomic knurled pattern can be found on every size and model (elbow plugs, watertight and vacuum-tight). The 00 and 01 series are suitable for a wide range of applications including test and measurement, use with semi-conductors, in broadcast (audio/video), and the medical, defence and aerospace sectors.
