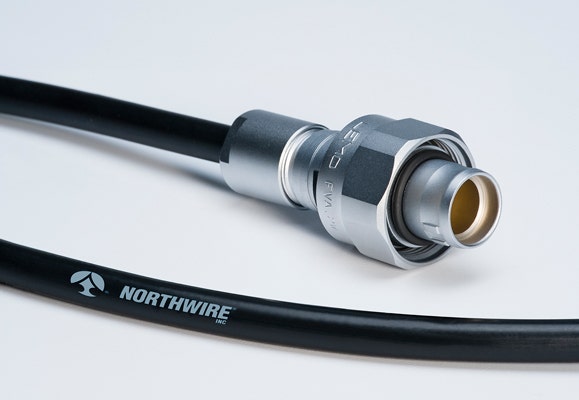

W - Underwater
High water pressure screw locking connectors designed for demanding marine and underwater applications
Main Features
- Screw locking
- High hydrostatic pressure environments (5 to 30 bar)
- Keying system
Reliable High quality and performance interconnect solutions
Modular and custom made complete solutions
Worldwide presence with local experts, stock management and cable assembly everywhere
Form & Material
- Environment
- Broad metallic high quality circular connector range for high hydrostatic pressure environments (e.g. underwater)
- Latching system
- Screw locking system enabling simple yet safe and reliable frequent connect and disconnect
- Keying system
- Keying system allowing for a high contact density, with multiple key options to prevent mismating
- Construction
- Field proven solid & compact construction resisting to extreme conditions (e.g. immersion into salt water)
- Ergonomy
- Ergonomic design
- Size and model
- Various sizes and models including miniature and vaccumtight models
Electrical configurations
- Insert configurations
- Large selection of insert configurations including high-density low voltage, coaxial, triaxial, fibre optic, fluidic and thermocouple contacts as well as hybrid solutions
- Screening
- 360° screening for full EMC shielding
20 Oct 2023
High Pressure - under water W series
20 Oct 2023
Product brief - High-speed data transfer
20 Oct 2023
Connector selection guide eng
20 Oct 2023
75Ω/3GHz coaxial contact
20 Oct 2023
High-speed data transfer
Suitable applications
SUPREME
Use the table to compare the 3 main series within the SUPREME connector family and to identify the connector(s) best adapted to your specific requirements.
| Description | Description Flawless performances in highly regulated environments such as nuclear hot cells | Description High water pressure screw locking connectors designed for demanding marine and underwater applications | Description Single contact high voltage connectors in high grade materials |
| Locking | Locking Push-Pull telemanipulator | Locking Screw locking | Locking Push-Pull |
| Size | Size 4 sizes from ø 22.0 to ø 45.0 mm (plugs) | Size 6 sizes from Ø 17.2 to 50.0 mm (plugs) | Size 3 sizes from Ø 13.0 to 47.0 mm (plugs) |
| Keying | Keying 2 keyway | Keying 4 keyway | Keying No keyway (unipole) |
| Shell Types | Shell Types Special shell design | Shell Types Over 9 shell styles | Shell Types Over 19 shell styles |
| Shell Material | Shell Material Stainless steel | Shell Material Stainless steel or Brass | Shell Material Brass |
| Plating | Plating - | Plating Chrome on brass version | Plating Chrome |
| Cable Diameter | Cable Diameter 6.1 to 30.0 mm | Cable Diameter 1 to 23.5 mm | Cable Diameter 1.2 to 31.3 mm |
| NB of contact | NB of contact 2 to 64 | NB of contact 1 to 64 | NB of contact 1 |
| AWG | AWG 8 to 32 | AWG 8 to 32 | AWG 2 to 21 |
| Contact types | Contact types Multipole • Coax | Contact types Multipole • Coax • Fibre • Fluidic | Contact types High Voltage |
| Contact Termination | Contact Termination Solder / Crimp | Contact Termination Solder / Crimp / Print (PCB) | Contact Termination Solder |
| Test Voltage | Test Voltage up to 3.6 kV (rms) | Test Voltage up to 3.6 kV (rms) | Test Voltage up to 70 kV (rms) |
| Sealing Level | Sealing Level IP66 | Sealing Level IP68, 30 bars | Sealing Level IP50 |
| Temperature Range | Temperature Range -40°C to 160°C | Temperature Range -20°C to 200°C | Temperature Range -55°C to 230°C |
| Mating Cycles | Mating Cycles > 5000 | Mating Cycles > 1000 | Mating Cycles > 1000 |
W - Underwater
The W series is designed for high hydrostatic pressure environments, for example for underwater applications to approx. 300 metres (5 to 60 bars depending on socket size). The W series with screw locking is field-proven, and constructed for extreme conditions such as long immersion in saltwater. Multiple keys allow for high contact density and prevent mis-mating. W series connectors are suitable for test and measurement applications and the oil and gas, nuclear, chemical, marine and aerospace industries. This series offers a large selection of insert configurations, a variety of sizes and models, and electromagnetic (EMC) shielding.
- Plug
- Straight
- Nb of contacts
- 2
- Wire Size/AWG
- 28 - 20
- Jacket cable outside diameter [mm]
- 6.10 - 6.50 mm
- Socket / Receptacle
- Fixed Panel Front Mounted
- Nb of contacts
- 16
- Termination
- PCB - Straight
- Socket / Receptacle
- Fixed Panel Front Mounted
- Nb of contacts
- 12
- Termination
- PCB - Straight
- Socket / Receptacle
- Fixed Panel Front Mounted
- Nb of contacts
- 10
- Termination
- PCB - Straight
- Socket / Receptacle
- Fixed Panel Front Mounted
- Nb of contacts
- 3
- Termination
- PCB - Straight
- Socket / Receptacle
- Fixed Panel Front Mounted
- Nb of contacts
- 14
- Termination
- PCB - Straight
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 4.60 - 5.00 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Crimp
- Wire Size/AWG
- 32 - 28
- Jacket cable outside diameter [mm]
- 3.60 - 4.00 mm
- Socket / Receptacle
- Free
- Nb of contacts
- 4
- Termination
- Crimp
- Wire Size/AWG
- 32 - 28
- Jacket cable outside diameter [mm]
- 3.10 - 3.50 mm
- Socket / Receptacle
- Fixed Panel Front Mounted
- Nb of contacts
- 18
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Plug
- Straight
- Nb of contacts
- 7
- Termination
- Crimp
- Wire Size/AWG
- 20 - 18
- Jacket cable outside diameter [mm]
- 8.10 - 8.50 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 6.60 - 7.00 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 7.60 - 8.00 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 8.10 - 8.50 mm
- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Solder
- Wire Size/AWG
- 28 - 20
- Jacket cable outside diameter [mm]
- 10.10 - 10.50 mm
