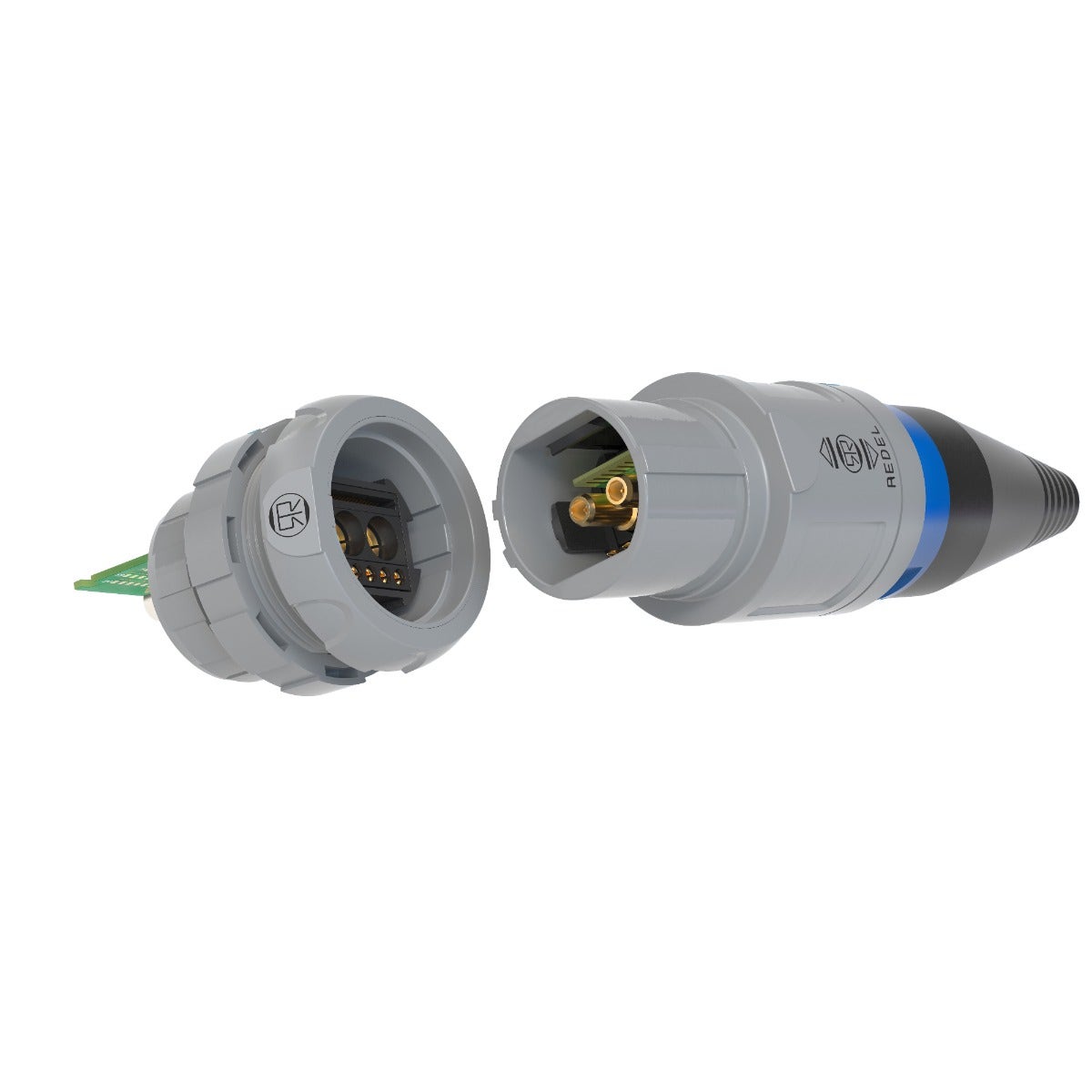

REDEL MP - Modular Inner Push-Pull
Modular plastic connector with inner Push-Pull
Main Features
- Custom intelligence integration
- Expandable and future proof connectivity solution
- Extreme high-density and space saving design
- Inner Push-Pull patented latching system
- Modular and configurable connector system
- Multiple transmission types in one hybrid connector
Reliable High quality and performance interconnect solutions
Modular and custom made complete solutions
Worldwide presence with local experts, stock management and cable assembly everywhere
Form & Material
- Environment
- High quality plastic (PPSU) circular connector range which is also approved for medical application
- Latching system
- Inner Push-Pull patented latching system enabling simple/quick yet safe and reliable frequent connect and disconnect
- Keying system
- Keying system allowing for a high contact density, with multiple key and color options to prevent mismatch
- Construction
- Field proven light & compact construction, outer shell in proprietary polyphenylsulfone PPSU material (FDA approved) enabling extensive sterilization cycles and high chemical resistance.
- Size and model
- Various models, modular concept
- Ergonomy
- Ergonomic and scoop proof design
Electrical configurations
- Insert configurations
- Wide range of configurable modules options from low voltage, fibre optics, coax, PCB, fluidic and hybrid
- Design
- Qualified for electrostatic discharge protected designs: IEC 60601-1 (15kV)
REDEL
Use the table to compare the 3 main series within the REDEL connector family and to identify the connector(s) best adapted to your specific requirements.
| Description | Description Highly configurable plastic Push-Pull connector | Description Highly configurable plastic connector with inner Push-Pull | Description Modular plastic connectors |
| Locking | Locking Push-Pull | Locking Inner Push-Pull | Locking Inner Push-Pull |
| Size | Size 3 sizes from ø 14.0 to ø 21.2 mm (plugs) | Size 1 size ø 15.5 mm (plugs) | Size 1 size ø 24.4 mm (plug) |
| Keying | Keying 6 keyway + 7 colour options | Keying 4 keyway + 7 colour options | Keying 4 keyway + 4 colour options |
| Shell Type | Shell Type Over 12 shell styles​ | Shell Type Over 8 shell styles​ | Shell Type Over 6 shell styles |
| Shell Material | Shell Material PEI / PSU | Shell Material PPSU | Shell Material PPSU |
| Plating | Plating - | Plating - | Plating - |
| Cable Diameter | Cable Diameter 2.7 to 9.5 mm | Cable Diameter 2.5 to 7.5 mm | Cable Diameter Module selection dependent |
| NB of contact | NB of contact 2 to 34 | NB of contact 4 to 22 | NB of contact 5 to 144 |
| AWG | AWG 12 to 32 mm | AWG 18 to 32 mm | AWG 20 to 32 |
| Contact types | Contact types Multipole • Coax • Fibre Optic • Fluidic High Voltage • Mixed • Thermocouple | Contact types Multipole | Contact types Multipole • Coax • Fibre Optic • Fluidic • Hybrid |
| Contact Termination | Contact Termination Solder / Crimp / Print (PCB) | Contact Termination Solder / Crimp / Print (PCB) | Contact Termination Solder / Crimp / Print (PCB) |
| Sterilization | Sterilization Steam / ETO / Gamma | Sterilization Steam / ETO | Sterilization Steam / ETO |
| Sealing level | Sealing level IP50 / IP66 | Sealing level IP50 | Sealing level IP50 |
| Temperature range | Temperature range -55°C to 170°C | Temperature range -50°C to 170°C | Temperature range -50°C to 170°C* |
| * with all modules except PCB modules | |||
| Mating Cycles | Mating Cycles > 1000 | Mating Cycles > 2000 | Mating Cycles > 2000 |
REDEL MP - Modular Inner Push-Pull

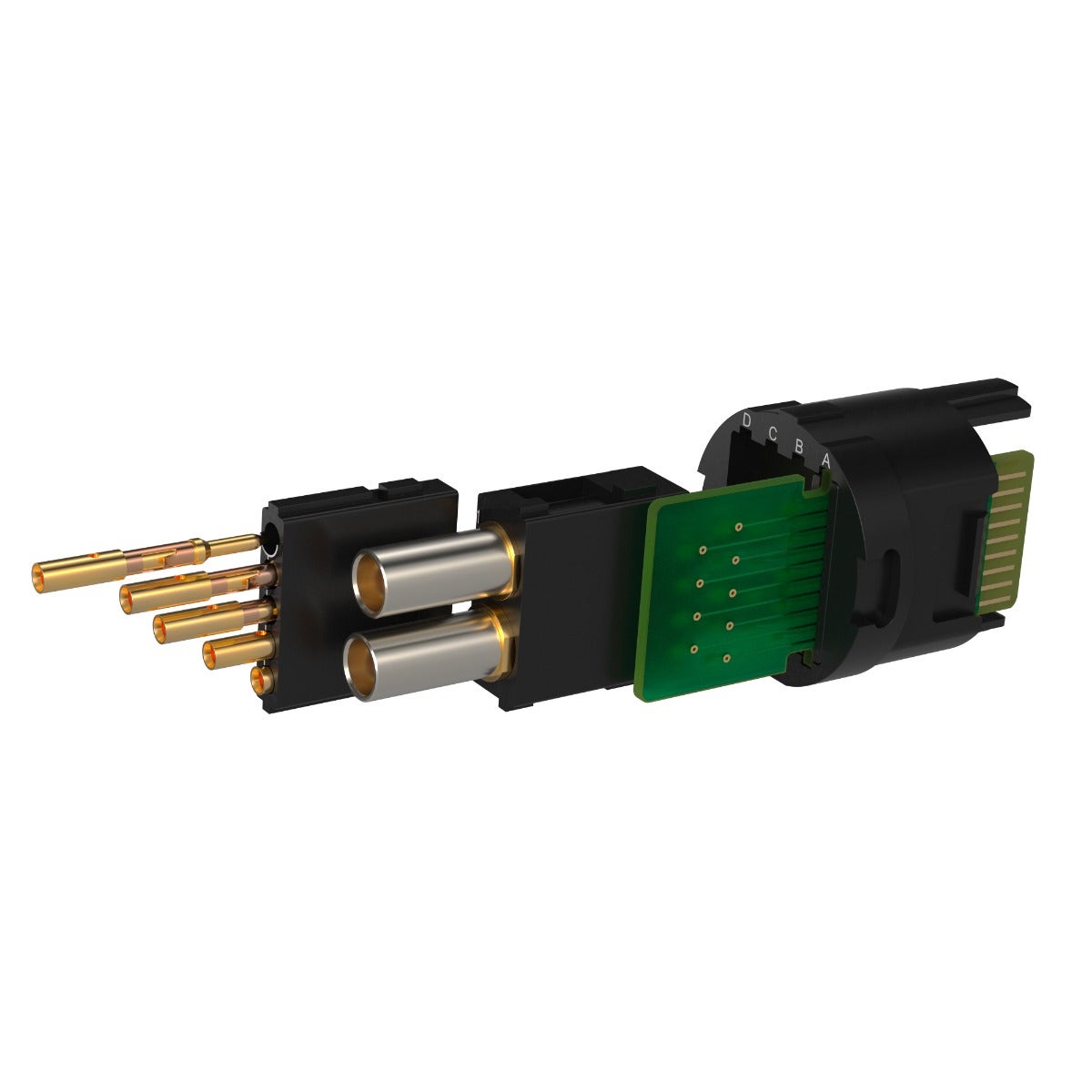

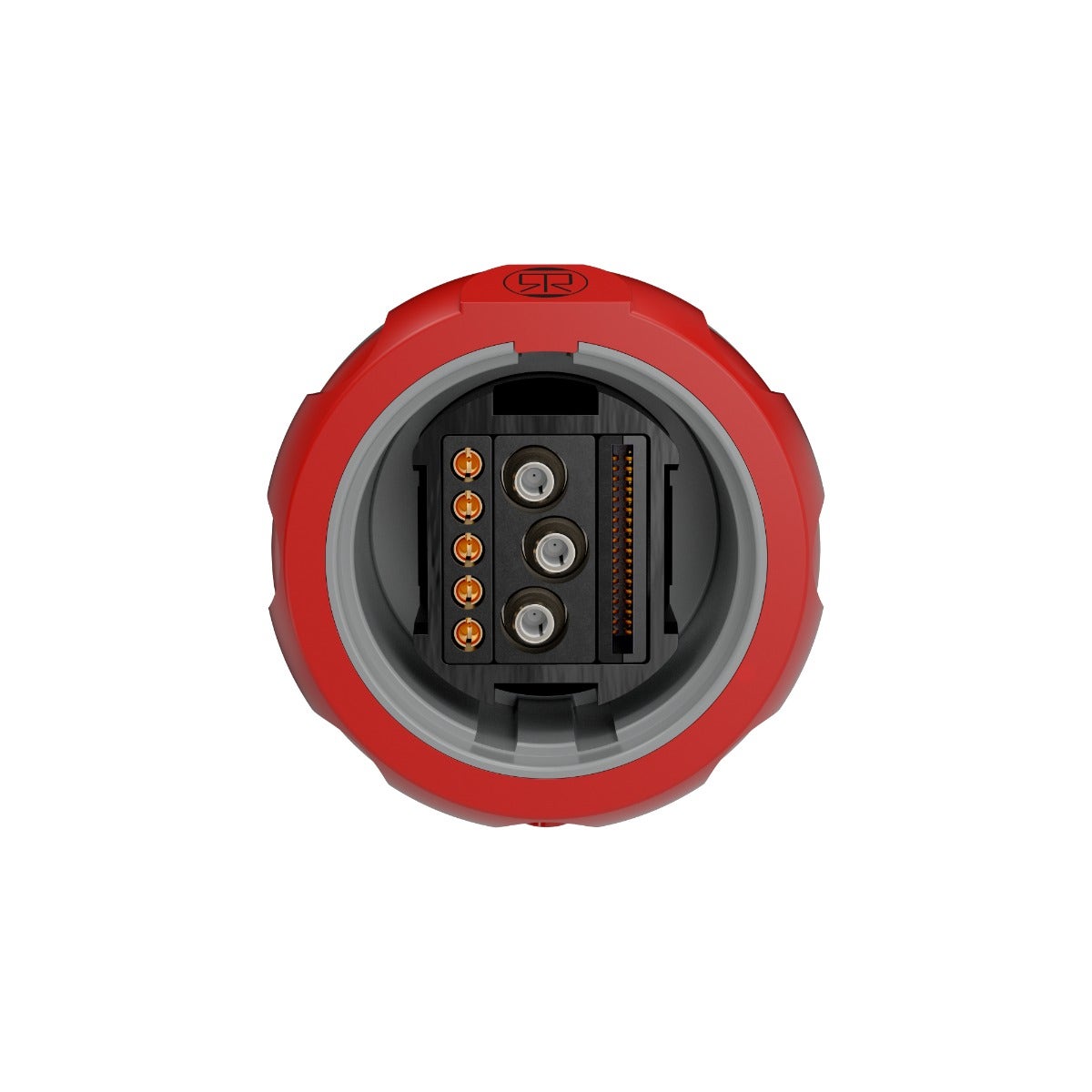

The REDEL MP Series goes beyond traditional connectors with a new modular insert concept modules to combine power, signal, data, fibre and fluidic in a single hybrid connector. The REDEL MP Series introduces high-contact density modules, an innovation that allows 144 contacts in a compact connector by using edge cards concept. The PCB module can be customized with the integration of intelligence, such as an EPROM. The clip- in assembly modules of the REDEL MP allow for a quick and easy assembly with minimum tooling. Its expandable design ensures to stay ahead in an ever-evolving technological landscape. And full cable assembly options are also available.
- Plug
- Straight
- Plug
- Straight
- Socket / Receptacle
- Fixed Panel Rear Mounted
- Socket / Receptacle
- Fixed Panel Rear Mounted
- Socket / Receptacle
- Fixed Panel Front Mounted
- Socket / Receptacle
- Fixed Panel Front Mounted
- Socket / Receptacle
- Fixed Panel Rear Mounted
- Socket / Receptacle
- Fixed Panel Rear Mounted
- Socket / Receptacle
- Fixed Panel Front Mounted
- Socket / Receptacle
- Fixed Panel Front Mounted
- Socket / Receptacle
- Free
- Socket / Receptacle
- Free
- Nb of contacts
- 5
- Termination
- Solder
- Nb of contacts
- 5
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Nb of contacts
- 5
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
