F - Rugged Push-Pull
LEMO lightweight, compact, high vibration resistant (Mil STD 810F), IP67 Push-Pull connector
Main Features
- Harsh environments (IP67)
- Push-Pull latching system
- Strong resistance to shocks and vibrations
- Multi-Keying system with color coding
- Light & compact construction
- Stealth Anthracite coating
Reliable High quality and performance interconnect solutions
Modular and custom made complete solutions
Worldwide presence with local experts, stock management and cable assembly everywhere
OPTIMA
Use the table to compare the 2 main series within the OPTIMA connector family and to identify the connector(s) best adapted to your specific requirements.
| Description | Description LEMO lightweight, compact, high vibration resistant (Mil STD 202 & 810F), IP68 screw locking connector | Description LEMO lightweight, compact, high vibration resistant (Mil STD 810F), IP67 Push-Pull connector |
| Locking | Locking Triple start, 3/4 turn rachet coupling | Locking Push-Pull |

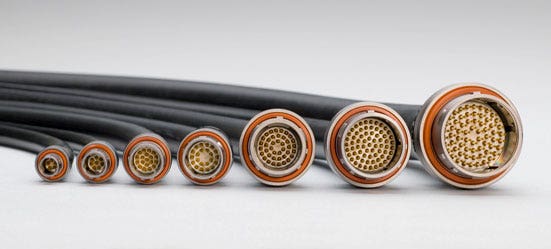

| Size | Size 9 sizes from ø 11.1 to ø 34.0 mm (plugs) | Size 9 sizes from ø 8.5 to ø 36.1 mm (plugs) |
| Keying | Keying 6 keyway options | Keying 4 keyway options |
| Shell Types | Shell Types Over 40 shell styles | Shell Types Over 12 shell styles |
| Shell Material | Shell Material Aluminium or Brass | Shell Material Aluminium or Brass |
| Plating | Plating Antracite nickel or Chrome | Plating Antracite nickel or Chrome |
| Cable Diameter | Cable Diameter 2.2 to 34 mm • 4 backshell options available | Cable Diameter 2.2 to 34 mm • 1 backshell option |
| NB of contact | NB of contact 3 to 114 | NB of contact 3 to 66 |
| AWG | AWG LV 16 to 32 • Hpower 1 to 8 | AWG 18 to 32 |
| Contact types | Contact types Multipole • Coax • Fibre Optic • Fluidic Mixed • High power | Contact types Multipole • Fibre Optic |
| Contact Termination | Contact Termination Crimp / Print (PCB) | Contact Termination Crimp / Print (PCB) |
| Data Protocols | Data Protocols USB 2.0 / Eth Cat6 | Data Protocols - |
| Sealing level | Sealing level IP68 / hermetic sockets | Sealing level IP68 / hermetic sockets |
| Temperature range | Temperature range -55°C to 200°C | Temperature range -55°C to 200°C |
| Mating Cycles | Mating Cycles > 3000 | Mating Cycles 300 / 5000 acc. to sizes/material |
F - Rugged Push-Pull

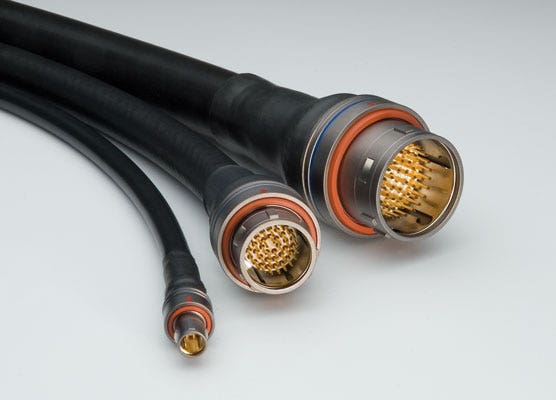

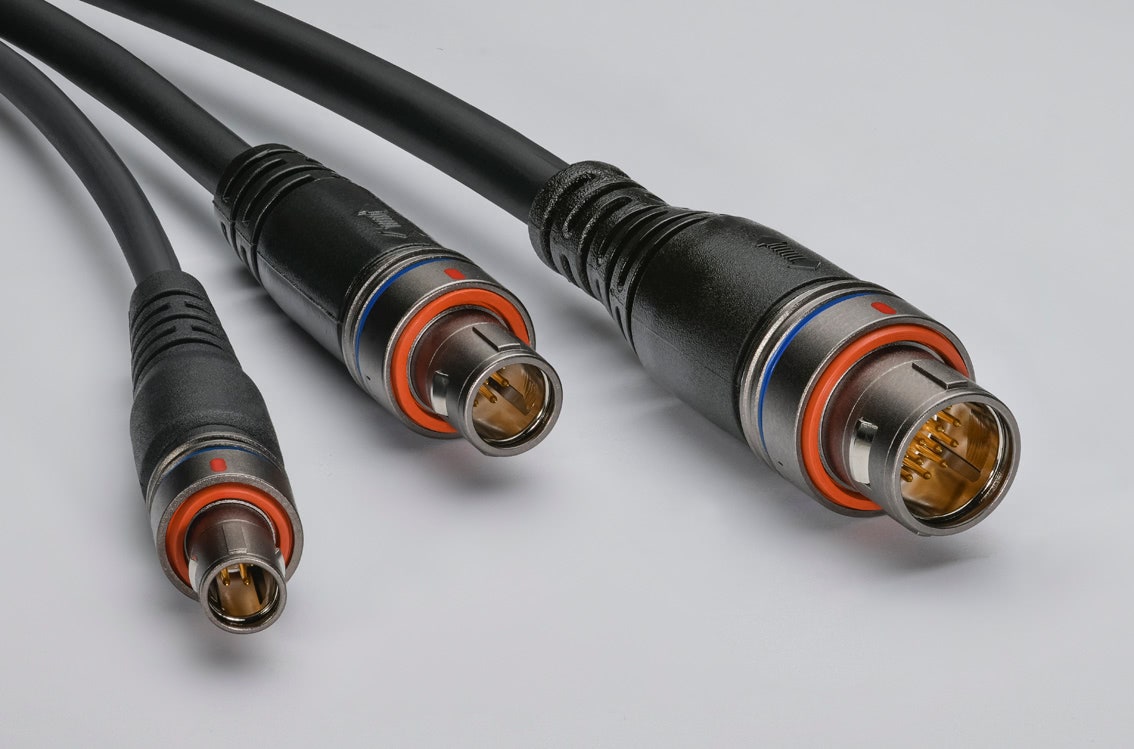

The F series self-latching push-pull connector offers a unique compact and light design with a robust multi-keying alignment system and color coding. Targeted for harsh environments (IP67) it offers high resistance to shocks, vibrations, oil and fuel. Suitable for use in defence, motorsports and aerospace contexts, a large selection of insert configurations (high-density low voltage, fibre optic contacts and hybrid solutions) as well as miniature, watertight and vacuumtight models are available. The F series also protects sensitive signals with 360° EMC shielding.
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 5.30 - 14.00 mm
- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 3.80 - 9.00 mm
- Plug
- Straight
- Nb of contacts
- 3
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 3.80 - 9.00 mm
- Plug
- Straight
- Nb of contacts
- 3
- Termination
- Crimp
- Wire Size/AWG
- 20 - 18
- Jacket cable outside diameter [mm]
- 3.80 - 10.70 mm
- Plug
- Straight
- Nb of contacts
- 3
- Termination
- Crimp
- Wire Size/AWG
- 20 - 18
- Jacket cable outside diameter [mm]
- 3.80 - 10.70 mm
- Plug
- Straight
- Nb of contacts
- 19
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 5.30 - 14.00 mm
- Plug
- Straight
- Nb of contacts
- 12
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 5.30 - 14.00 mm
- Plug
- Straight
- Nb of contacts
- 12
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 5.30 - 14.00 mm
- Plug
- Straight
- Nb of contacts
- 10
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 5.30 - 14.00 mm
- Plug
- Straight
- Nb of contacts
- 10
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 5.30 - 14.00 mm
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 3.80 - 10.70 mm
- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 3.80 - 10.70 mm
- Plug
- Straight
- Nb of contacts
- 5
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 3.80 - 10.70 mm
- Plug
- Straight
- Nb of contacts
- 5
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 3.80 - 10.70 mm
- Plug
- Straight
- Nb of contacts
- 5
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 3.80 - 9.00 mm
