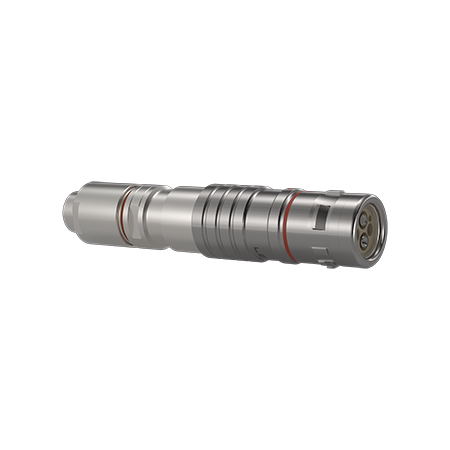

- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 8.90 - 9.50 mm
Electrical Configuration
- Contact Termination Low voltage
- Crimp
- Contact Termination High voltage
- Crimp
- Nb of contacts Fiber optic
- 2
- Insert configuration value
- 3K.93C - 2 FO Type F2, 2 HV + 2 LV
- Rated current
- 10 A
- Fiber Optic Contact
- Type F2
- Vtest power/signal (AC)
- 2250V , 1000V
- Working voltage power/signal(AC)
- 600V , 42V
- Cable type
- SMPTE 311M or EBU R100
- Number of contacts Low Voltage
- 2
- Number of contacts High Voltage
- 2
- Wire Size/AWG
- 24 - 20
Form & Material
- Shell style / Model id

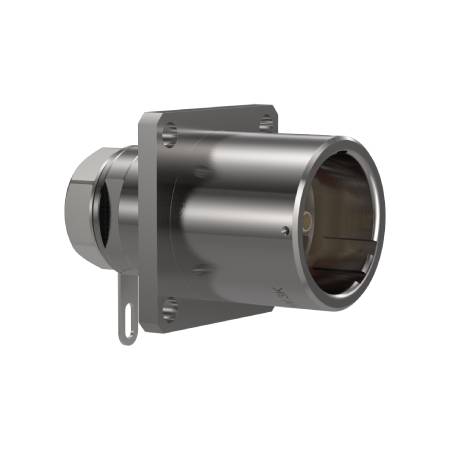

- ED - Fixed receptacle, 'Y' design with rear square flange, protruding shell and earthing tag, 4 holes mounting
- Socket / Receptacle
- Fixed Panel Front Mounted
- Housing material
- Special housing (see notes for details)
- Locking system
- Push-pull
- Keying
- 5 keys (alpha=95, beta=115, gamma=20, delta=30, plug: female LV, male HV, female FO contacts)
- Weight
- 60.67 g
Environment
- Environmental sealing (IP rating)
- IP68
- Endurance
- 20000 mating cycles
- Temperature range
- -40°C / +80°C
- Climatical Category
- 50/175/21
- Humidity (max)
- <=95% [at 60 deg C /140 F]
- Shielding (min)
- 95 dB (10 MHz)
- Shielding (min)
- 80 dB (1 GHz)
- Shock Resistance
- 100 g [ 6 ms]
- Vibration
- 15 g [10 Hz - 2000 Hz]
CAD
3K.93C.Y - SMPTE Hybrid
Main Features
- Digital HDTV cameras in outdoor environments (IP68)
- Conforms to ARIB, SMPTE & EBU standards
- Push-Pull latching system
- Robust construction
