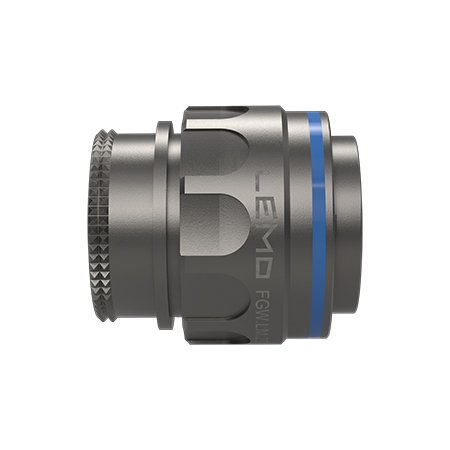

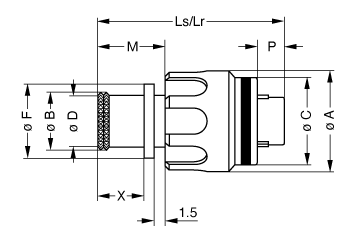

FGW.LM.232.XLZZT

Electrical Configuration

Nb of contacts Coax

12

Insert configuration value

LM.232 - 12 coax (50 Ohm)

Insulator

L: PEEK

Rated current

2.5 A

VSWR

<1.25 (DC to 8 GHz) and <1.5 (8 GHz to 26 GHz)

Test voltage (KV rms) Contact-Screen

0.95

Cable type

RG-174/U , RG-188 A/U , RG-316/U , LMR-100A , Multiflex_86

Gender

Standard

Form & Material

Shell style / Model id

FG - Straight plug with arctic grip

Plug

Straight

Housing material

Aluminium (nickel plated [SAE AMS QQ N 290], anthracite color) shell and nut, other pieces bronze/brass

Locking system

Ratchet

Keying

W: 5 keys (alpha=95, beta=115, gamma=35, delta=25, plug: male contacts, receptacle: female contacts)

Colour

Grey

Variant

Delivered without coaxial contacts

Weight

18.75 g

Environment

Technical domain

Motorsport, Security and Defence, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP68

Endurance

3000 mating cycles

Temperature range

-55°C / +200°C

EMI Shielding EIA 364-66A

>= 80 dB (1 GHz), >=70 dB (3 GHz), >= 58 dB (6 GHz), >= 40 dB (10 GHz)

Gunfire vibration

25 Hz - 2000 Hz, 3 axis (Apache helicopter)

Humidity (max)

21 days at 95%

Lighting strike EIA 364-76

10K amps - 6 times

Shock Resistance

300 g [ 3 ms]

Thermal shock

5 cycles: -65°C to +150°C

Vibration-Random

37.8 g rms - 3 axes, 4 hr amb [50 Hz - 2000 Hz]

Vibration-Sine

30 g, 3 axes, 12 hr [10 Hz - 2000 Hz]

Salt Spray Corrosion

max. 48 hr

Cable fixation

Cable termination protection

For overmolding

Fixation type

Mold stop (overmolding)

Jacket cable outside diameter [mm]

2.80 - 22.70 mm
