- Jacket cable outside diameter [mm]
- 2.20 - 6.30 mm
Electrical Configuration
- Number of contacts Low Voltage
- 4

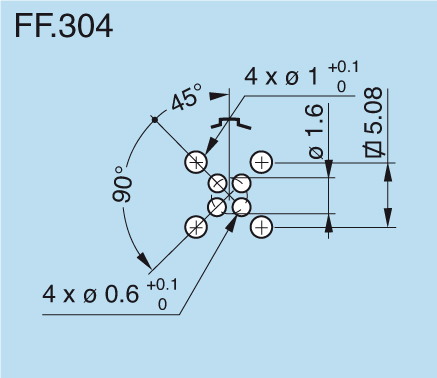

- Contact Termination Low voltage
- PCB - Straight
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Rated current
- 2 A
- Contact Dia.
- 0.5
- Gender
- Reverse Gender
Form & Material
- Shell style / Model id
- ECN - Fixed receptacle with 2 nuts key (N) or key (S), protruding shell (back panel mounting)
- Socket / Receptacle
- Fixed Panel Rear Mounted
- Locking system
- Push-pull
- Keying
- 3 keys (alpha=42, gamma=30, plug: male contacts, receptacle: female contacts)
- Weight
- 3.32 g
Environment
- Technical domain
- Motorsport, Security and Defence
- Environmental sealing (IP rating)
- IP50
F - Rugged Push-Pull
Main Features
- Harsh environments (IP67)
- Push-Pull latching system
- Strong resistance to shocks and vibrations
- Multi-Keying system with color coding
- Light & compact construction
- Stealth Anthracite coating
