M - Rugged Ratchet coupling

- 恶劣环境(IP68)
- 棘齿结构,对冲击和振动有强大的抵抗力
- 隐形蓝黑色涂层
- 结构轻巧紧凑

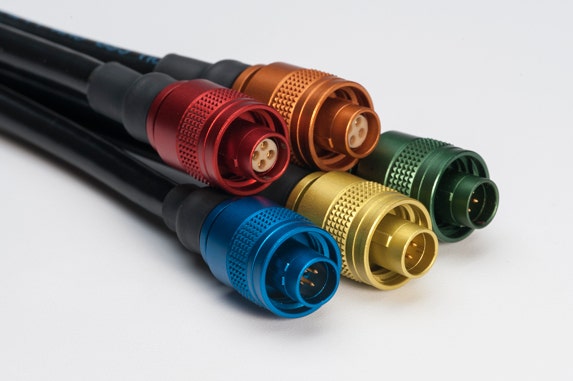

- 定位销系统和颜色编码
描述 | 描述 轻量、紧凑、高抗振(Mil STD 202&810F)、IP68棘齿螺纹连接器 | 描述 轻量、紧凑、高抗振(Mil STD 810F)、IP67 插拔自锁连接器 |
锁定方式 | 锁定方式 棘轮锁定,转3/4圈即锁定 | 锁定方式 插拔自锁 |
尺寸 | 尺寸 9种尺寸,直径从ø 11.1到ø 34.0 mm(插头) | 尺寸 9种尺寸,直径从ø 8.5到ø 36.1 mm(插头) |
定位销 | 定位销 6种定位销 | 定位销 4种定位销 |
外壳类型 | 外壳类型 超过40种外壳样式 | 外壳类型 12多种外壳样式 |
外壳材料 | 外壳材料 铝合金或黄铜 | 外壳材料 铝合金或黄铜 |
镀层 | 镀层 镍或铬 | 镀层 镍或铬 |
适配电缆外径 | 适配电缆外径 2.2到34 mm • 有4种后壳可选 | 适配电缆外径 2.2到34 mm • 有1种后壳可选 |
针芯数量 | 针芯数量 3到114 | 针芯数量 3到66 |
AWG | AWG LV 16到32 mm • Hpower 1到8 mm | AWG 18到32 mm |

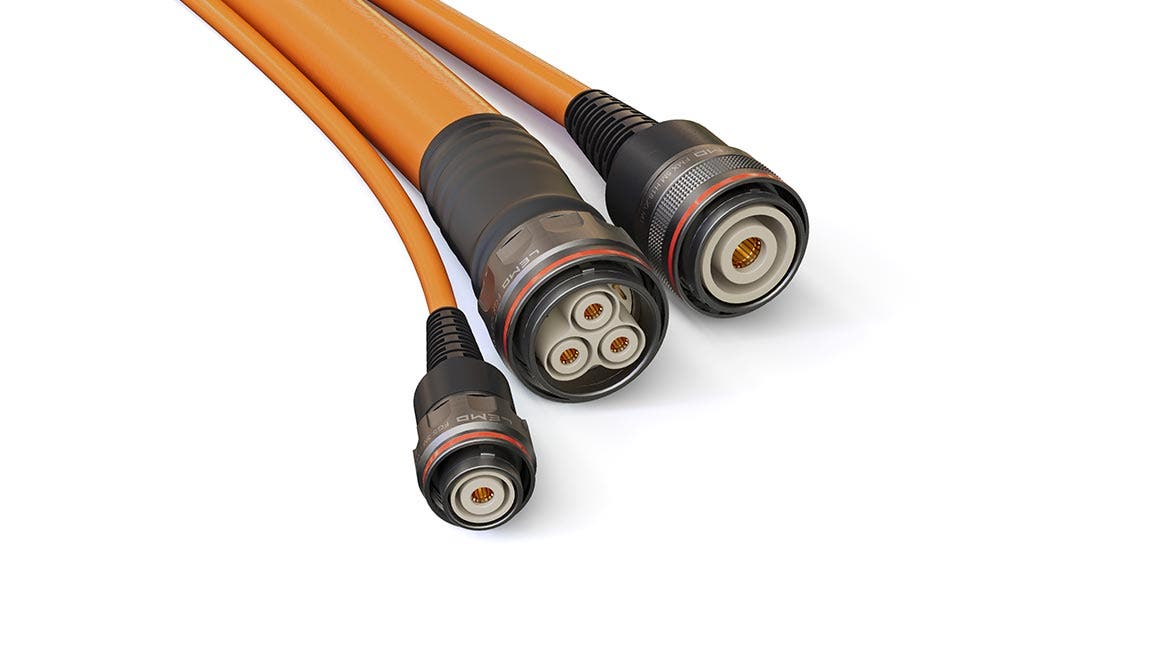

针芯类型 | 针芯类型 多芯 • 同轴 • 光纤 • 流体 混装 • 高功率 | 针芯类型 多芯 • 光纤 |
针芯加工方式 | 针芯加工方式 压接 / 印制电路板(PCB) | 针芯加工方式 压接 / 印制电路板(PCB) |

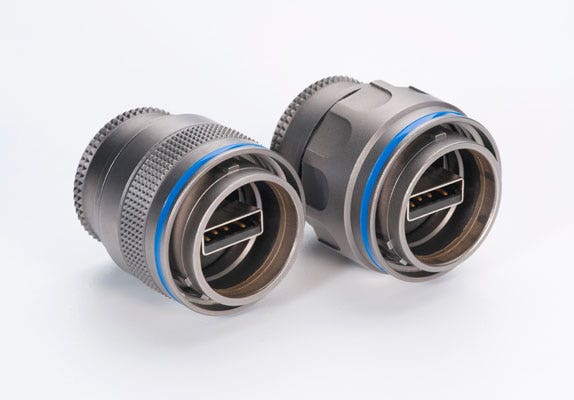

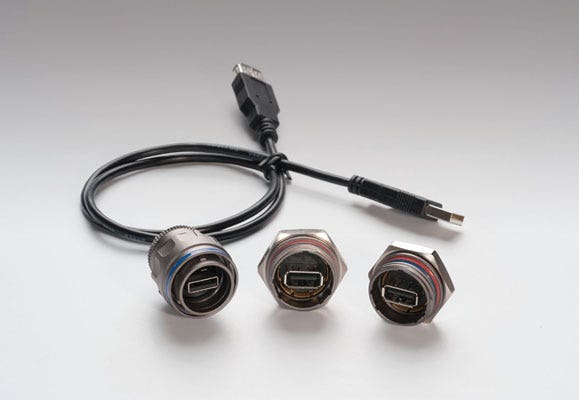

数据协议 | 数据协议 USB 2.0 / Eth Cat6 | 数据协议 - |
防水等级 | 防水等级 IP68 / 密封插座 | 防水等级 IP68 / 密封插座 |
温度范围 | 温度范围 -55°C 到 200°C | 温度范围 -55°C 到 200°C |
插拔次数 | 插拔次数 > 3000 | 插拔次数 300 / 5000 根据不同尺寸及外壳材料 |

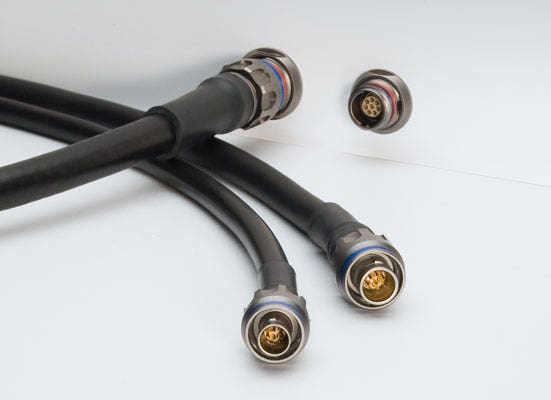

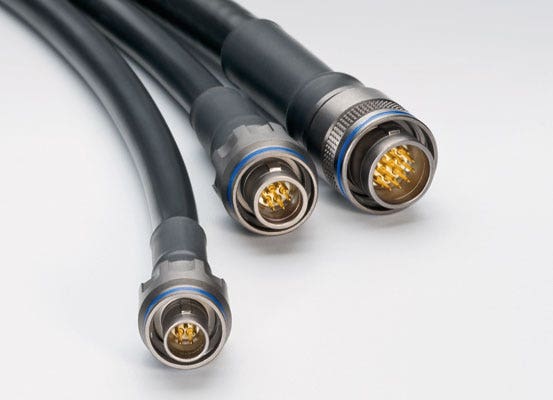

在恶劣环境中,连接器需要可靠、坚固且抗振性强。M系列广泛应用于航空航天、无人机、国防和赛车等行业,采用了棘齿结构,实现快速而安全的耦合。M系列轻巧紧凑,同时坚固且耐油/耐燃料,有各种尺寸(包括微型)、防水和真空密封型号,螺纹型号兼容标准MIL-DTL-38999L背壳。定位销系统提供高密度多芯,确保信号传输的安全性,敏感信号由360°电磁兼容屏蔽进行保护。提供丰富的配置,包括高密度多芯、高功率、高速、同轴和光纤针芯,以及混装配置。

- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Crimp
- Wire Size/AWG
- 20 - 16
- Jacket cable outside diameter [mm]
- 6.50 - 13.00 mm

- Plug
- Straight
- Nb of contacts
- 19
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 6.50 - 13.00 mm

- Plug
- Straight
- Nb of contacts
- 19
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 6.50 - 13.00 mm

- Plug
- Straight
- Nb of contacts
- 19
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 6.50 - 13.00 mm

- Plug
- Straight
- Nb of contacts
- 12
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 6.50 - 13.00 mm

- Plug
- Straight
- Nb of contacts
- 5
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 4.85 - 9.70 mm

- Plug
- Straight
- Nb of contacts
- 5
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 4.85 - 9.70 mm

- Plug
- Straight
- Nb of contacts
- 5
- Termination
- Crimp
- Wire Size/AWG
- 24 - 20
- Jacket cable outside diameter [mm]
- 4.85 - 9.70 mm

- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 4.85 - 9.70 mm

- Plug
- Straight
- Nb of contacts
- 8
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 4.85 - 9.70 mm

- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 4.00 - 8.00 mm

- Plug
- Straight
- Nb of contacts
- 6
- Termination
- Crimp
- Jacket cable outside diameter [mm]
- 6.50 - 13.00 mm

- Plug
- Straight
- Nb of contacts
- 3
- Termination
- Crimp
- Wire Size/AWG
- 20 - 16
- Jacket cable outside diameter [mm]
- 4.85 - 9.70 mm

- Plug
- Straight
- Nb of contacts
- 4
- Termination
- Crimp
- Jacket cable outside diameter [mm]
- 4.85 - 9.70 mm

- Plug
- Straight
- Nb of contacts
- 2
- Termination
- Crimp
- Wire Size/AWG
- 20 - 16
- Jacket cable outside diameter [mm]
- 4.85 - 9.70 mm
