XRB.00.303.NLN

Electrical Configuration

Number of contacts Low Voltage

3

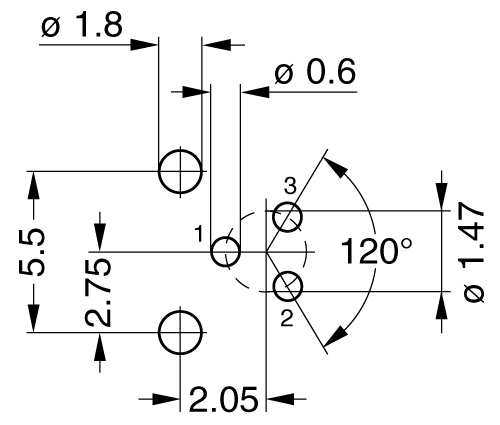

Contact Termination Low voltage

PCB - Straight

Insert configuration value

0.303 - 3 Low Voltage

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

3 A

Vtest (contact-contact)

800 V (AC), 1130 V (DC)

Vtest (contact-shell)

950 V (AC), 1340 V (DC)

Contact Dia.

0.5

Form & Material

Shell style / Model id

XR - Elbow receptacle, fixing nut for printed circuit, short shell, threaded-fixing (back panel mounting)

Socket / Receptacle

Elbow

Housing material

Brass (nickel plated [SAE AMS QQ N 290]) shell, collet nut, latch sleeve and mid pieces

Locking system

Push-pull

Keying

B: 2 keys (alpha=60, plug: male contacts, receptacle: female contacts)

Colour

Grey

Weight

3.97 g

Environment

Environmental sealing (IP rating)

IP50

Climatical Category

50/175/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shielding (min)

75 dB (10 MHz)

Shielding (min)

40 dB (1 GHz)

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

>144 hr

Cable fixation

Cable termination protection

Standard back nut (no additional protection)

Fixation type

Cable collet
