PPC.M0.6GG.N

Electrical Configuration

Number of contacts Low Voltage

6

Contact Termination Low voltage

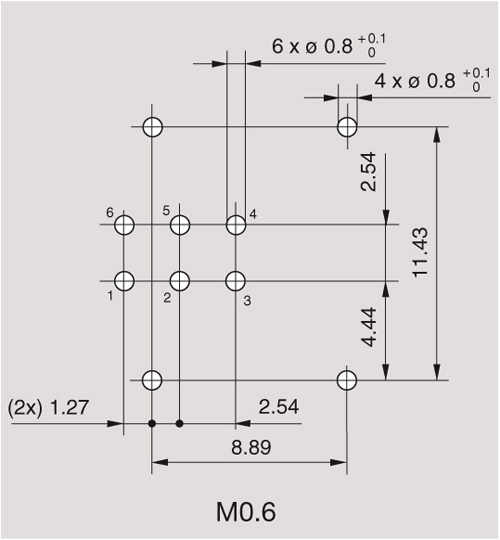

PCB - Straight

R (max)

6.5 mOhm

Insert configuration value

1P.M06 - 6 Low Voltage

Insulator

G: PSU gray

Rated current

6 A

Test voltage contact-contact

1.48 (kV DC)

Air clearance

0.85 mm

Creepage distance

0.85 mm

Contact Dia.

0.7 mm (0.0275in)

Gender

Standard

Form & Material

Shell style / Model id

PP - Elbow receptacle key (G) or keys (A,B,C) for printed circuit

Socket / Receptacle

Elbow

Housing material

PSU (Polysulfone), grey

Locking system

Push-pull

Keying

C: 2 keys (alpha=80, Plug: male contacts, Receptacle: female contacts)

Colour

Grey

Weight

5.52 g

Environment

Technical domain

Energy and Industrial, Medical, Test and Measurement, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP50

Endurance

> 5000 mating cycles

Temperature range

-50°C / +150°C

F ret (max)

150 N

F ret (min)

50 N

Steam sterilization

Fully sterilizable (Steam, Gamma, ETO) following our protocols and tests in line with ISO 11134 and IEC 60601-1 standards. For more details on sterilization methods and cycles, please contact us.
