EPG.0B.305.HLN

Electrical Configuration

Number of contacts Low Voltage

5

Contact Termination Low voltage

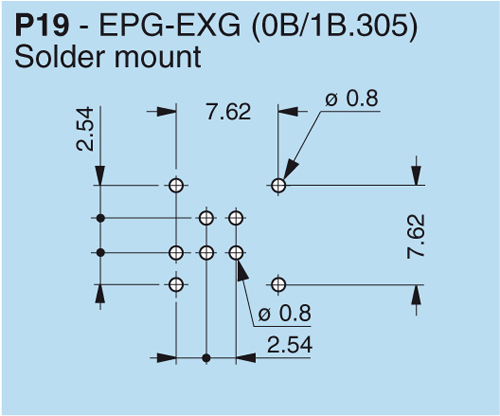

PCB - Straight

R (max)

6.1 mOhm

Insert configuration value

0B.305/EPG - 5 Low Voltage

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

4.5 A

Test voltage contact-body shell

1.2 kV rms

Test voltage contact-contact

1.25 kV rms

Contact Dia.

0.7 mm (0.028in)

Gender

Standard

Form & Material

Shell style / Model id

EP.HLN - Elbow receptacle for printed circuit (solder or screw fixing)

Socket / Receptacle

Elbow

Housing material

PPS (Polyphenylene) shell, other pieces nickel plated [SAE AMS QQ N 290] brass

Locking system

Push-pull

Keying

G: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Weight

9.74 g

Environment

Technical domain

Audio Video, Energy and Industrial, Medical, Semiconductor, Specialties and Other, Test and Measurement, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP50

Endurance

5000 mating cycles

Temperature range

-55°C / +250°C (max. temperature valid for short periods of use.)

Climatical Category

50/175/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shielding (min)

75 dB (10 MHz)

Shielding (min)

40 dB (1 GHz)

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

>144 hr
