PNG.M0.8GL.NN

Electrical Configuration

Number of contacts Low Voltage

8

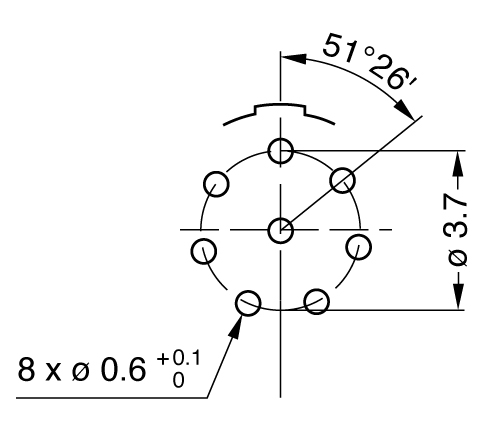

Contact Termination Low voltage

PCB - Straight

R (max)

6.5 mOhm

Insert configuration value

1P.M08 - 8 Low Voltage

Footprint IPC Class3 compatibility

Yes

Class3 Productibility Level Compatibility

A (General Design Producibility - Preferred)

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

5 A

Test voltage contact-contact

1.48 (kV DC)

Air clearance

0.6 mm

Creepage distance

0.6 mm

Contact Dia.

0.7 mm (0.0275in)

Gender

Standard

Form & Material

Shell style / Model id

PN - Fixed receptacle, nut fixing, watertight

Socket / Receptacle

Fixed Panel Front Mounted

Housing material

PSU (Polysulfone), grey

Locking system

Push-pull

Keying

G: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Colour

Grey - Black

Variant

Black front nut

Weight

5.46 g

Environment

Technical domain

Energy and Industrial, Medical, Test and Measurement, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP64

Endurance

> 5000 mating cycles

Temperature range

-50°C / +150°C

F ret (max)

150 N

F ret (min)

50 N

Steam sterilization

Compiles with ISO 17665:2024 sterilization standard for autoclave, ISO 11135:2014 for EtO, and ISO 11137-1, -2, -3 standards for gamma, e-beam x-ray. For more details on sterilization methods and cycles, please contact us.
