HMG.0T.309.KLNP

Electrical Configuration

Number of contacts Low Voltage

9

Contact Termination Low voltage

PCB - Straight

R (max)

8.7 mOhm

Insert configuration value

T.309 - 9 Low Voltage

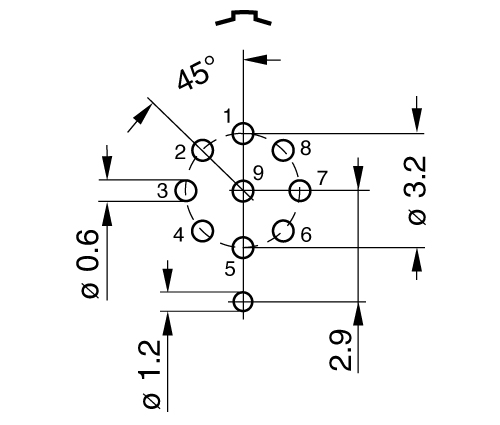

Footprint IPC Class3 compatibility

No

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

2.5 A

Vtest (contact-contact)

1.1 kV (DC)

Vtest (contact-shell)

1.6 kV (DC)

Contact Dia.

0.5 mm (0.02in)

Gender

Standard

Form & Material

Shell style / Model id

HM - Fixed socket, nut fixing, watertight or vacuumtight, back panel mounting

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

Brass (black chrome) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces

Locking system

Push-pull

Keying

G: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Colour

Black

Variant

Watertight unmated (connector to device)

Weight

4.7 g

Panel Drill Hole

M9

Environment

Technical domain

Energy and Industrial, Test and Measurement

Environmental sealing (IP rating)

IP68

Endurance

>3000 mating cycles

Temperature range

-20°C / +80°C

Climatic Category

50/175/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

>1000 hr
