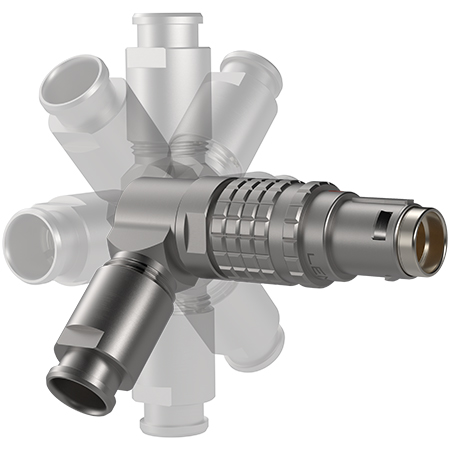

FSG.3T.326.CLAC95Z

Electrical Configuration

Number of contacts Low Voltage

26

Contact Termination Low voltage

Solder

R (max)

5.7 mOhm

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

3.5 A

Vtest (contact-contact)

1.4 kV DC

Vtest (contact-shell)

1 kV DC

Max. Solid Conductor

0.34 mm² (AWG 22)

Max. Stranded Conductor

0.34 mm² (AWG 22)

Bucket Dia.

0.8 mm (0.031in)

Contact Dia.

0.7 mm (0.028in)

Wire Size/AWG

30 - 22

Gender

Standard

Form & Material

Shell style / Model id

FS - Adjustable elbow plug with cable collet and nut for fitting a bend relief

Plug

Elbow

Housing material

Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces

Locking system

Push-pull

Keying

G: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Colour

Grey

Variant

Nut for fitting a bend relief

Environment

Technical domain

Energy and Industrial, Test and Measurement

Environmental sealing (IP rating)

IP68

Endurance

>3000 mating cycles

Temperature range

-55°C / +200°C (max. temperature valid for short periods of use.)

Climatic Category

50/175/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

>1000 hr

Note

Cable diameter is specific for Anglissimo to enable easy termination of connector

Cable fixation

Cable termination protection

Standard back nut (no additional protection)

Jacket cable outside diameter [mm]

9.10 - 9.50 mm
