FSG.1T.303.CLAC60

Electrical Configuration

R (max)

3.6 mOhm

Rated current

12 A

Vtest (contact-contact)

1.9 kV (DC)

Vtest (contact-shell)

2.2 kV (DC)

Max. Solid Conductor

0.5 mm² (AWG 20)

Max. Stranded Conductor

0.5 mm² (AWG 20)

Bucket Dia.

1 mm (0.039in)

Contact Dia.

1.3 mm (0.051in)

Wire Size/AWG

28 - 20

Gender

Standard

Form & Material

Shell style / Model id

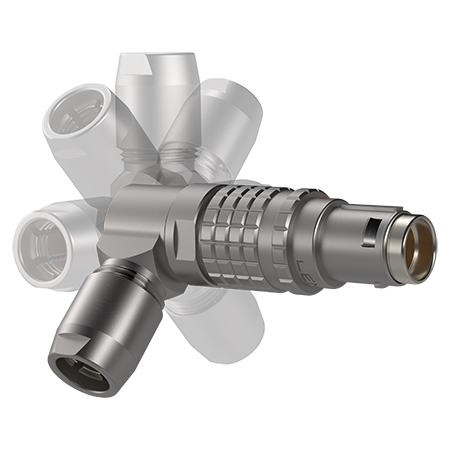

FS - Adjustable right angle Anglissimo plug (8 selective positions) with cable collet

Plug

Elbow

Housing material

Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces

Locking system

Push-pull

Keying

G: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Colour

Grey

Weight

16.25 g

Environment

Technical domain

Energy and Industrial, Test and Measurement

Environmental sealing (IP rating)

IP68

Temperature range

-55°C / +200°C (max. temperature valid for short periods of use.)

Climatic Category

50/175/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

>1000 hr

Note

Cable diameter is specific for Anglissimo to enable easy termination of connector

Cable fixation

Cable termination protection

Standard back nut (no additional protection)

Fixation type

Cable collet

Jacket cable outside diameter [mm]

5.60 - 6.00 mm
