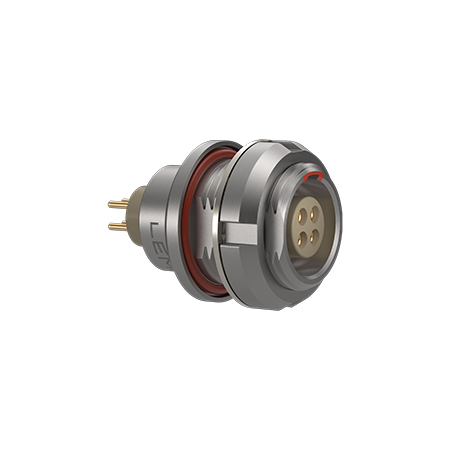

EEA.0T.302.CLN

Electrical Configuration

Number of contacts Low Voltage

2

Contact Termination Low voltage

PCB - Straight

R (max)

4.8 mOhm

Insert configuration value

T.302 - 2 Low Voltage

Footprint IPC Class3 compatibility

Yes

Class3 Productibility Level Compatibility

A (General Design Producibility - Preferred)

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

10 A

Vtest (contact-contact)

1.9 kV (DC)

Vtest (contact-shell)

1.5 kV (DC)

Contact Dia.

0.9 mm (0.035in)

Gender

Standard

Form & Material

Shell style / Model id

EE - Fixed receptacle, nut fixing, back panel mounting

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces

Locking system

Push-pull

Keying

A: 2 keys (alpha=30, plug: male contacts, receptacle: female contacts)

Colour

Grey

Weight

4.48 g

Panel Drill Hole

M9

Environment

Technical domain

Energy and Industrial, Test and Measurement

Environmental sealing (IP rating)

IP68

Endurance

>3000 mating cycles

Temperature range

-55°C / +200°C (max. temperature valid for short periods of use.)

Climatic Category

50/175/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

>1000 hr
