EEL.2K.310.CLD

Electrical Configuration

Number of contacts Low Voltage

10

Contact Termination Low voltage

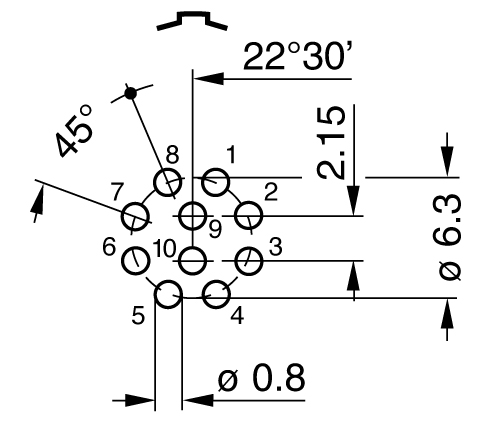

PCB - Straight

Insert configuration value

2K.310 - 10 Low Voltage

Footprint IPC Class3 compatibility

Yes

Class3 Productibility Level Compatibility

A (General Design Producibility - Preferred)

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

8 A

Vtest (contact-contact)

2 kV (DC)

Vtest (contact-shell)

1.9 kV (DC)

Contact Dia.

0.9

Gender

Reverse Gender

Form & Material

Shell style / Model id

EE - Fixed receptacle, nut fixing (back panel mounting)

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

Brass (chrome plated [SAE AMS 2460]) shell, collet nut and latch sleeve, nickel plated [SAE AMS QQ N 290] brass mid pieces

Locking system

Push-pull

Keying

2 keys (gamma=75, plug: female contacts, receptacle: male contacts)

Colour

Grey

Weight

32.74 g

Panel Drill Hole

M20

Environment

Technical domain

Audio Video, Energy and Industrial, Medical, Test and Measurement

Environmental sealing (IP rating)

IP68

Endurance

5000 mating cycles

Temperature range

-55°C / +200°C (max. temperature valid for short periods of use.)

Climatic Category

50/175/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shielding (min)

95 dB (10 MHz)

Shielding (min)

80 dB (1 GHz)

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

>1000 hr
