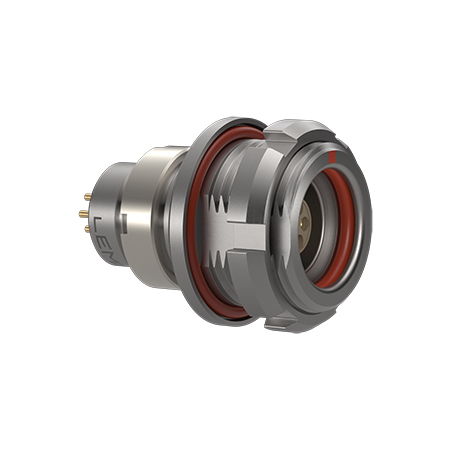

HCG.1B.310.CLNP

Electrical Configuration

Number of contacts Low Voltage

10

Contact Termination Low voltage

PCB - Straight

R (max)

8.7 mOhm

Insert configuration value

1B.310 - 10 Low Voltage

Footprint IPC Class3 compatibility

Yes

Class3 Productibility Level Compatibility

C (High Design Producibility - Reduced)

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

2 A

Vtest (contact-contact)

1.3 kV (DC)

Vtest (contact-shell)

2.1 kV (DC)

Contact Dia.

0.5 mm (0.02in)

Gender

Standard

Form & Material

Shell style / Model id

HC - Fixed receptacle, nut fixing, watertight or vacuum-tight (watertight when mated, back panel mounting)

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces

Locking system

Push-pull

Keying

G: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Colour

Grey

Variant

Watertight unmated (connector to device)

Weight

23 g

Panel Drill Hole

M16

Environment

Technical domain

Audio Video, Energy and Industrial, Medical, Semiconductor, Specialties and Other, Test and Measurement, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP68

Endurance

5000 mating cycles

Temperature range

-20°C / +100°C

Climatic Category

20/80/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shielding (min)

75 dB (10 MHz)

Shielding (min)

40 dB (1 GHz)

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Pressure

60 bars

Salt Spray Corrosion

>1000 hr
