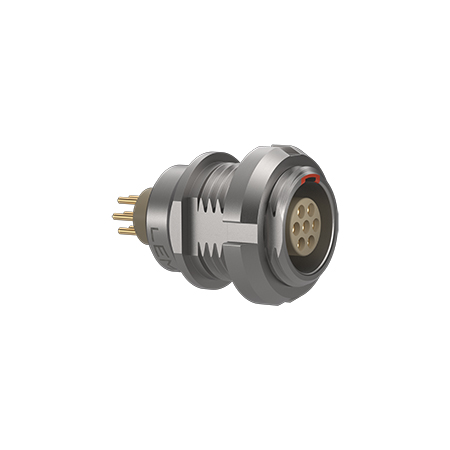

EEA.2B.312.CLN

Electrical Configuration

Number of contacts Low Voltage

12

Contact Termination Low voltage

PCB - Straight

R (max)

6.1 mOhm

Insert configuration value

2B.312 - 12 Low Voltage

Footprint IPC Class3 compatibility

Yes

Class3 Productibility Level Compatibility

A (General Design Producibility - Preferred)

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

7 A

Vtest (contact-contact)

1.8 kV (DC)

Vtest (contact-shell)

2 kV (DC)

Contact Dia.

0.7 mm (0.028in)

Gender

Standard

Form & Material

Shell style / Model id

EE - Fixed receptacle, nut fixing with straight contacts for printed circuit(back panel mounting)

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces

Locking system

Push-pull

Keying

A: 2 keys (alpha=30, plug: male contacts, receptacle: female contacts)

Colour

Grey

Weight

16.37 g

Panel Drill Hole

M15

Environment

Technical domain

Audio Video, Energy and Industrial, Medical, Semiconductor, Specialties and Other, Test and Measurement, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP50

Endurance

5000 mating cycles

Temperature range

-55°C / +250°C (max. temperature valid for short periods of use.)

Climatic Category

55/175/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shielding (min)

75 dB (10 MHz)

Shielding (min)

40 dB (1 GHz)

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

>1000 hr
