HEX.4F.340.XLDP

Electrical Configuration

Number of contacts Low Voltage

40

Contact Termination Low voltage

PCB - Straight

R (max)

6.1 mOhm

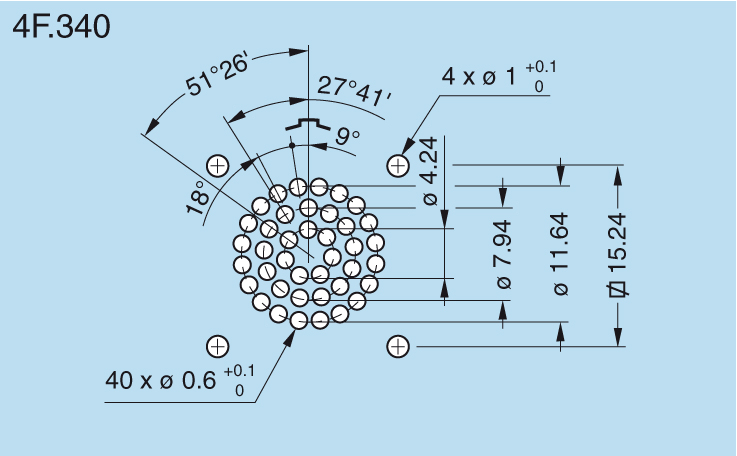

Insert configuration value

4F.340 - 40 Low Voltage

Footprint IPC Class3 compatibility

Yes

Class3 Productibility Level Compatibility

A (General Design Producibility - Preferred)

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

2 A

Vtest (contact-contact)

1350 V (AC), 1910 V (DC)

Vtest (contact-shell)

1300 V (AC), 1840 V (DC)

Contact Dia.

0.7 mm (0.028in)

Gender

Reverse Gender

Form & Material

Shell style / Model id

HE - Fixed receptacle, nut fixing, for printed circuit (back panel mounting)

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

Aluminium (nickel plated [SAE AMS QQ N 290], anthracite color) shell and nut, other pieces bronze/brass

Locking system

Push-pull

Keying

5 keys (alpha=100, beta=125, gamma=40, delta=20, plug: female contacts, receptacle: male contacts)

Colour

Grey

Variant

Watertight unmated (connector to device)

Weight

135.81 g

Panel Drill Hole

M24

Environment

Technical domain

Motorsport, Security and Defence

Environmental sealing (IP rating)

IP68

Endurance

1000 mating cycles

Temperature range

-15°C / +100°C

Climatic Category

15/200/21 (Aluminium shell)

Humidity (max)

<=95% [at 60 deg C /140 F]

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Pressure

5 bars

Salt Spray Corrosion

max. 48 hr
