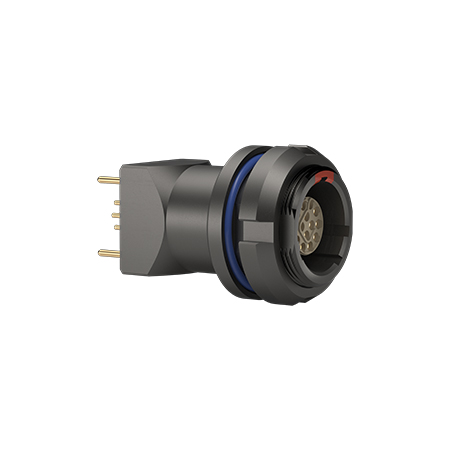

HXR.1D.314.FLNR

Electrical Configuration

Number of contacts Low Voltage

14

Contact Termination Low voltage

PCB - Straight

R (max)

7.5 mOhm (at 1000 cycles)

Insert configuration value

1D.314 - 14 Low Voltage

Footprint IPC Class3 compatibility

No

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

2 A

Vtest (contact-contact)

1.1 kV (DC)

Vtest (contact-shell)

1.7 kV (DC)

Contact Dia.

0.5 mm (0.02in)

Gender

Standard

Form & Material

Shell style / Model id

HX - Fixed receptacle, nut fixing for printed circuit (back panel mounting)

O-ring

Fluorosilicone

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

Brass (Nickel plated [SAE AMS QQ N 290], anthracite color) shell and other metallic parts

Locking system

Push-pull

Keying

R: 5 keys (alpha=95, beta=100, gamma=25, delta=40, plug: male contacts, receptacle: female contacts)

Colour

Anthracite

Weight

11.8 g

Environment

Technical domain

Security and Defence, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP68

Endurance

5000 mating cycles

Temperature range

-55°C / +150°C

Climatic Category

50/175/21

F ret (max)

400 N

F ret (min)

100 N

Humidity (max)

<=95% [at 60 °C /140 F]

Shielding (min)

>= 75 dB (10 MHz)

Shielding (min)

>= 40 dB (1 GHz)

Shock Resistance

50 g [ 11 ms]

Vibration

37.8 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

1000 hr
