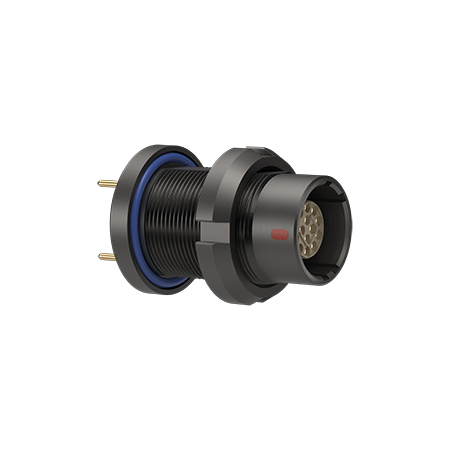

FGR.1D.308.FLAE75

Electrical Configuration

Number of contacts Low Voltage

8

Contact Termination Low voltage

Solder

R (max)

5.6 mOhm (at 1000 cycles)

Insert configuration value

1D.308 - 8 Low Voltage

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

5 A

Vtest (contact-contact)

1.1 kV (DC)

Vtest (contact-shell)

1 kV (DC)

Max. Solid Conductor

0.34 mm² (AWG 22)

Max. Stranded Conductor

0.34 mm² (AWG 22)

Bucket Dia.

0.8 mm (0.031in)

Contact Dia.

0.7 mm (0.028in)

Number of differentiated pairs (High speed)

4

Protocol

1000 Base-T4 (1Gb/s)

Wire Size/AWG

30 - 22

Gender

Standard

Form & Material

Shell style / Model id

FG - Straight plug Push-Pull, overmolded cable

Plug

Straight

Housing material

Brass (Nickel plated [SAE AMS QQ N 290], anthracite color) shell and other metallic parts

Locking system

Push-pull

Keying

R: 5 keys (alpha=95, beta=100, gamma=25, delta=40, plug: male contacts, receptacle: female contacts)

Colour

Anthracite

Environment

Technical domain

Security and Defence, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP68

Endurance

5000 mating cycles

Temperature range

-40°C / +90°C (Overmolding)

Climatic Category

50/175/21

F ret (max)

400 N

F ret (min)

100 N

Humidity (max)

<=95% [at 60 °C /140 F]

Shielding (min)

>= 75 dB (10 MHz)

Shielding (min)

>= 40 dB (1 GHz)

Shock Resistance

50 g [ 11 ms]

Vibration

37.8 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

1000 hr

Cable fixation

Cable termination protection

Potting

Fixation type

Crimp / Overmolding
