Electrical Configuration
- Number of contacts High Voltage
- 1
- Contact Termination High voltage
- PCB - Straight
- Insert configuration value
- 1Y.416 - 1 High Voltage

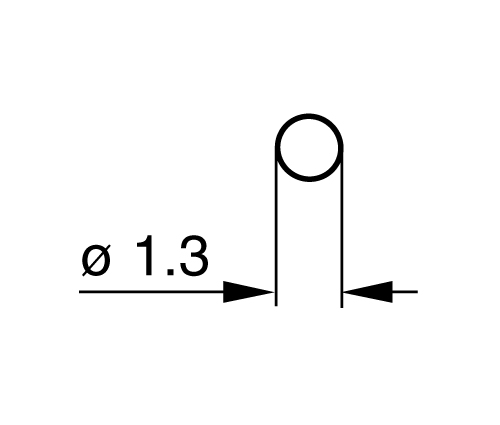

- Footprint IPC Class3 compatibility
- Yes
- Class3 Productibility Level Compatibility
- A (General Design Producibility - Preferred)
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Rated current
- 6 A
- Test voltage (kV DC)
- 35
- Creepage distance
- 14 mm
Form & Material
- Shell style / Model id
- EWB - Fixed receptacle, nut fixing, vaccumtight, for print
- Socket / Receptacle
- Fixed Panel Front Mounted
- Housing material
- Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
- Locking system
- Push-pull
- Keying
- Circular
- Colour
- Grey
- Weight
- 17.16 g
- Panel Drill Hole
- M16
Environment
- Technical domain
- Specialties and Other
- Environmental sealing (IP rating)
- IP50
- Salt Spray Corrosion
- >1000 hr
Technical plans
Dimensions
| A | e | L | S1 | S2 | B | C | |
|---|---|---|---|---|---|---|---|
| mm. | 20 | M16x1.0 | 37.5 | 14.5 | 19 | 14.6 | 16.1 |
| in. | 0.79 | 1.48 | 0.57 | 0.75 | 0.57 | 0.63 |
CAD
Y - High Voltage Unipole
Main Features
- High voltage requirements (5-50 kV DC)
- Push-Pull latching system
- Optional safety locking device
