- Plug
- Straight
- Termination
- Solder
- Wire Size/AWG
- 24 - 16
- Jacket cable outside diameter [mm]
- 5.70 - 6.10 mm
- Contacts
- 2 Low Voltage
Electrical Configuration
- Number of contacts Low Voltage
- 2
- Contact Termination Low voltage
- Solder
- Insert configuration value
- 2C.302 - 2 Low Voltage
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Rated current
- 20 A
- Vtest
- 1700 V (AC), 2400 V (DC)
- Contact Dia.
- 1.6
- Wire Size/AWG
- 24 - 16
Form & Material
- Shell style / Model id
- ECP - Fixed receptacle with two nuts
- Socket / Receptacle
- Fixed Panel Front Mounted
- Housing material
- Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
- Locking system
- Push-pull
- Keying
- Hermaphroditic keying (half moon insert) with female pin 1
- Weight
- 11.83 g
- Panel Drill Hole
- M15
Environment
- Environmental sealing (IP rating)
- IP50
- Endurance
- 500 mating cycles
- Salt Spray Corrosion
- >1000 hr
Technical plans

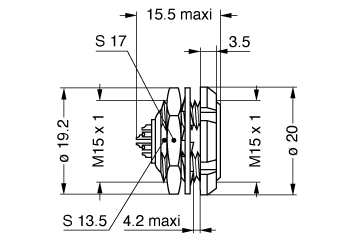

Dimensions
| A | B | e | E | L | M | S3 | S1 | |
|---|---|---|---|---|---|---|---|---|
| mm. | 20 | 19.2 | M15x1 | 4.2 | 15.6 | 3.5 | 17 | 13.5 |
| in. | 0.79 | 0.76 | 0.17 | 0.61 | 0.14 | 0.67 | 0.53 |
