PKH.M1.4GL.VV

Electrical Configuration

Number of contacts Low Voltage

14

Contact Termination Low voltage

PCB - Elbow

R (max)

8.5 mOhm

Insert configuration value

1P.M14 - 14 Low Voltage

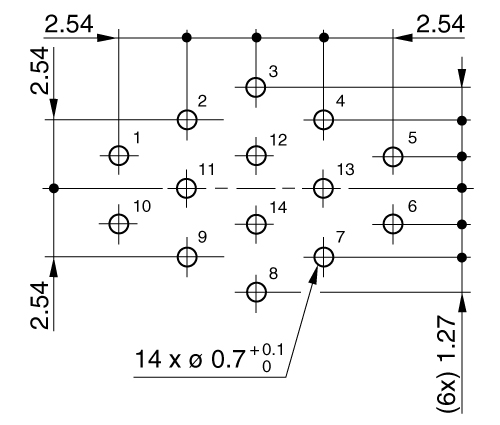

Footprint IPC Class3 compatibility

Yes

Class3 Productibility Level Compatibility

A (General Design Producibility - Preferred)

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

2 A

Test voltage contact-contact

0.85 (kV DC)

Air clearance

0.5 mm

Creepage distance

0.5 mm

Contact Dia.

0.5 mm (0.0201in)

Gender

Reverse Gender

Form & Material

Shell style / Model id

PK - Fixed receptacle with two nuts (back panel mounting), 90° print contacts

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

PSU (Polysulfone), grey

Locking system

Push-pull

Keying

H: 2 keys (beta=170, plug: female contacts, receptacle: male contacts)

Colour

Grey - Green

Variant

Green front nut

Weight

6.42 g

Environment

Technical domain

Energy and Industrial, Medical, Test and Measurement, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP50

Endurance

> 5000 mating cycles

Temperature range

-50°C / +150°C

F ret (max)

150 N

F ret (min)

50 N

Steam sterilization

Compiles with ISO 17665:2024 sterilization standard for autoclave, ISO 11135:2014 for EtO, and ISO 11137-1, -2, -3 standards for gamma, e-beam x-ray. For more details on sterilization methods and cycles, please contact us.
