- Model description
- Blanking cap for REDEL P
Electrical Configuration
- Number of contacts Low Voltage
- 9
- Contact Termination Low voltage
- PCB - Straight
- R (max)
- 8.5 mOhm
- Insert configuration value
- 1P.M09 - 9 Low Voltage

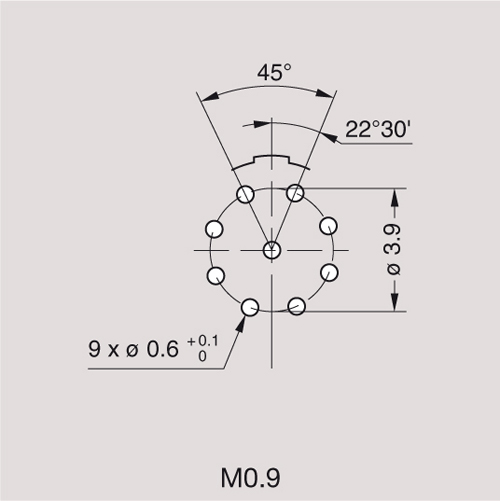

- Footprint IPC Class3 compatibility
- Contact LEMO for details
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Rated current
- 3 A
- Test voltage contact-contact
- 1.2 (kV DC)
- Air clearance
- 0.6 mm
- Creepage distance
- 0.6 mm
- Contact Dia.
- 0.5 mm (0.0201in)
- Gender
- Standard
Form & Material
- Shell style / Model id
- PK - Fixed receptacle with two nuts (back panel mounting), straight print contacts
- Socket / Receptacle
- Fixed Panel Rear Mounted
- Housing material
- PEI (Polyetherimide), grey
- Locking system
- Push-pull
- Keying
- G: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
- Colour
- Grey - Green
- Variant
- Green front nut
Environment
- Technical domain
- Energy and Industrial, Medical, Test and Measurement, Transportation, Aerospace and UAV
- Environmental sealing (IP rating)
- IP50
- Endurance
- > 5000 mating cycles
- Temperature range
- -50°C / +170°C
- F ret (max)
- 150 N
- F ret (min)
- 50 N
- Steam sterilization
- Compiles with ISO 17665:2024 sterilization standard for autoclave, ISO 11135:2014 for EtO, and ISO 11137-1, -2, -3 standards for gamma, e-beam x-ray. For more details on sterilization methods and cycles, please contact us.
