- Plug
- Straight
- Termination
- Solder
- Wire Size/AWG
- 30 - 22
- Jacket cable outside diameter [mm]
- 2.20 - 3.20 mm
- Contacts
- 3 Low Voltage
Standard
Electrical Configuration
- Number of contacts Low Voltage
- 3
- Contact Termination Low voltage

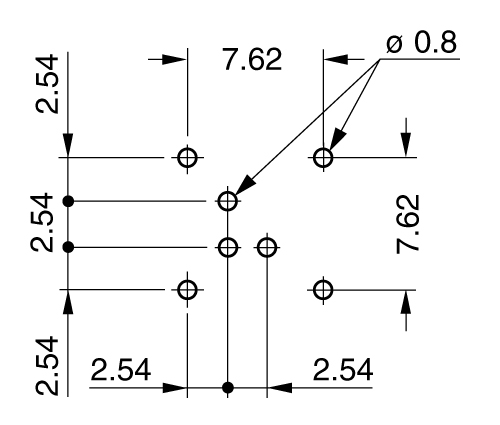

- PCB - Straight
- R (max)
- 4.8 mOhm
- Insert configuration value
- 1S.303 - 3 Low Voltage
- Footprint IPC Class3 compatibility
- Yes
- Class3 Productibility Level Compatibility
- A (General Design Producibility - Preferred)
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Test voltage (kV DC)
- 1.8
- Contact Dia.
- 0.9 mm (0.0354in)
Form & Material
- Shell style / Model id
- EXP - Elbow receptacle for printed circuit with two nuts (solder or screw fixing)
- Socket / Receptacle
- Elbow
- Housing material
- PPS (Polyphenylene) shell, other pieces nickel plated [SAE AMS QQ N 290] brass
- Locking system
- Push-pull
- Keying
- Hermaphroditic keying (half moon insert) with female pin 1
- Variant
- No hardware (washer/nut)
- Weight
- 11 g
Environment
- Technical domain
- Audio Video, Energy and Industrial, Semiconductor, Test and Measurement
- Environmental sealing (IP rating)
- IP50
- Endurance
- 5000 mating cycles
- Temperature range
- -55°C / +220°C (max. temperature valid for short periods of use.)
- Climatic Category
- 55/175/21
- Humidity (max)
- <=95% [at 60 deg C /140 F]
- Shielding (min)
- 75 dB (10 MHz)
- Shielding (min)
- 40 dB (1 GHz)
- Shock Resistance
- 100 g [ 6 ms]
- Vibration
- 15 g [10 Hz - 2000 Hz]
- Salt Spray Corrosion
- >144 hr
Technical plans
Dimensions
| D | A | B | L | M | N | S3 | K | e | E | H | I | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm. | 16.5 | 14 | 15 | 27 | 3.5 | 12.6 | 13 | 13.2 | M11x0.5 | 7.5 | 7.7 | 14 |
| in. | 0.65 | 0.55 | 0.59 | 1.06 | 0.14 | 0.5 | 0.51 | 0.52 | 0.3 | 0.3 | 0.55 |
CAD
S - Indoor Stepped Insert
Main Features
- Stepped inserts
- 8 sizes
- Indoor/protected environments (IP50)
- Push-Pull self latching system
- Up to 106 contacts
Recommended
- Model description
- Cap for receptacle
Standard
