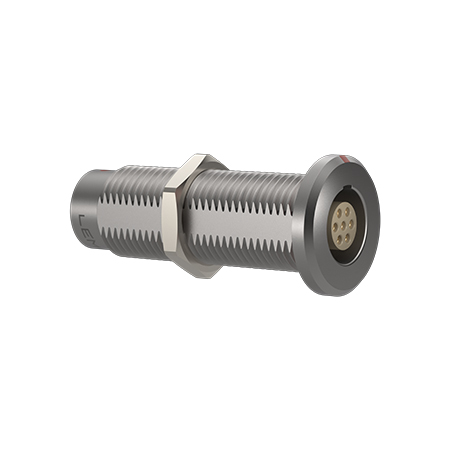

SGJ.3B.303.CLLP

Electrical Configuration

Number of contacts Low Voltage

3

Insert configuration value

3B.303 - 3 Low Voltage

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

25 A

Vtest (contact-contact)

2.7 kV (DC)

Vtest (contact-shell)

2.1 kV (DC)

Contact Dia.

2 mm (0.08in)

Gender

Reverse Gender

Form & Material

Shell style / Model id

SLG.5K/P - Fixed coupler, nut fixing, keys (G, A, B, J, K, L) at the flange end and keys (G, A, B, J, K, L) at the other end, watertight or vacuum-tight

Housing material

Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces

Locking system

Push-pull

Keying

Front side: 1 key (alpha=0, female) , Other side: 2 keys (alpha=37.5, male)

Colour

Grey

Variant

Watertight unmated (connector to device)

Weight

79.53 g

Panel Drill Hole

M20

Environment

Technical domain

Audio Video, Energy and Industrial, Medical, Semiconductor, Specialties and Other, Test and Measurement, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP68

Endurance

5000 mating cycles

Temperature range

-20°C / +80°C

Climatic Category

20/80/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shielding (min)

75 dB (10 MHz)

Shielding (min)

40 dB (1 GHz)

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Pressure

30 bars

Salt Spray Corrosion

>1000 hr
