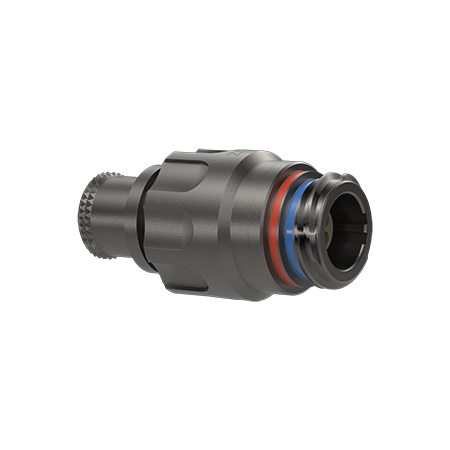

PHN.0M.511.XLMTZ

Electrical Configuration

Number of contacts Low Voltage

2

Contact Termination Low voltage

Crimp

R (max)

5.7 mOhm

Insert configuration value

0M.511 - SPE - 2 High Speed, Low Voltage (2.5 G BASE-T1 (IEEE 802.3ch))

Insulator

L: PEEK

Rated current

9 A

Test voltage contact-contact

1.90 kV (DC)

Test voltage contact-shell

1.20 kV (DC)

Contact retention

22 N

Max. Conductor

0.382 mm^2 (AWG 22)

Min. Conductor

0.128 mm^2 (AWG 26)

Bucket Dia.

0.87 mm (0.034in)

Contact Dia.

0.7 mm (0.028in)

Number of differentiated pairs (High speed)

1

Protocol

2.5G Base-T1 (2.5Gb/s)

Wire Size/AWG

26 - 22

Gender

Standard

Form & Material

Shell style / Model id

PH - Free receptacle with arctic grip and mold stop

Socket / Receptacle

Free

Housing material

Aluminium (nickel plated [SAE AMS QQ N 290], anthracite color) shell and nut, other pieces bronze/brass

Locking system

Ratchet

Keying

N: 3 keys (beta=165, gamma=30, plug: male contacts, receptacle: female contacts)

Colour

Grey

Environment

Technical domain

Motorsport, Security and Defence, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP68

Endurance

3000 mating cycles

Temperature range

-20°C / +200°C

EMI Shielding EIA 364-66A

>= 80 dB (1 GHz), >=70 dB (3 GHz), >= 58 dB (6 GHz), >= 40 dB (10 GHz)

Gunfire vibration

25 Hz - 2000 Hz, 3 axis (Apache helicopter)

Humidity (max)

21 days at 95%

Lighting strike EIA 364-76

10K amps - 6 times

Shock Resistance

300 g [ 3 ms]

Thermal shock

5 cycles: -65°C to +150°C

Vibration-Random

37.8 g rms - 3 axes, 4 hr amb [50 Hz - 2000 Hz]

Vibration-Sine

30 g, 3 axes, 12 hr [10 Hz - 2000 Hz]

Salt Spray Corrosion

max. 48 hr

Cable fixation

Cable termination protection

Heatshrink

Fixation type

Heatshrink

Jacket cable outside diameter [mm]

4.00 - 8.00 mm
