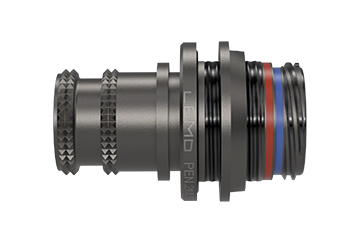

PEN.2M.514.XLMT6

Electrical Configuration

Number of contacts Low Voltage

8

Contact Termination Low voltage

Crimp

Insert configuration value

2M.514 - 8 High Speed, Low Voltage (CAT 6)

Insulator

L: PEEK

Rated current

8 A

Number of differentiated pairs (High speed)

4

Protocol

5G Base-T4 (5Gb/s)

Wire Size/AWG

24 - 22

Gender

Standard

Form & Material

Shell style / Model id

PE - Fixed receptacle, nut fixing and mold stop

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

Aluminium (nickel plated [SAE AMS QQ N 290], anthracite color) shell and nut, other pieces bronze/brass

Locking system

Ratchet

Keying

N: 3 keys (beta=165, gamma=30, plug: male contacts, receptacle: female contacts)

Colour

Grey

Weight

21.33 g

Panel Drill Hole

M17

Environment

Technical domain

Motorsport, Security and Defence, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP68

Temperature range

-20°C / +200°C (max. temperature valid for short periods of use.)

EMI Shielding EIA 364-66A

>= 80 dB (1 GHz), >=70 dB (3 GHz), >= 58 dB (6 GHz), >= 40 dB (10 GHz)

Gunfire vibration

25 Hz - 2000 Hz, 3 axis (Apache helicopter)

Humidity (max)

21 days at 95%

Lighting strike EIA 364-76

10K amps - 6 times

Shock Resistance

300 g [ 3 ms]

Thermal shock

5 cycles: -65°C to +150°C

Vibration-Random

37.8 g rms - 3 axes, 4 hr amb [50 Hz - 2000 Hz]

Vibration-Sine

30 g, 3 axes, 12 hr [10 Hz - 2000 Hz]

Salt Spray Corrosion

max. 48 hr

Cable fixation

Cable termination protection

For overmolding

Fixation type

Mold stop (overmolding)
