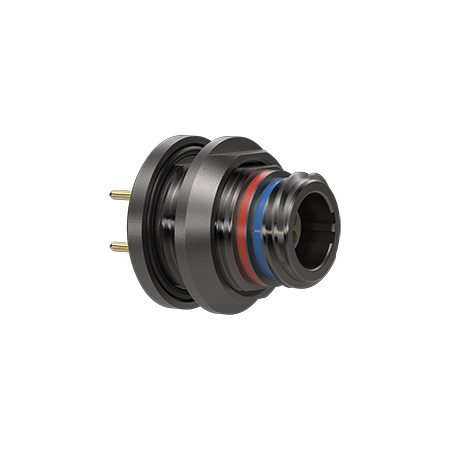

HEN.0M.511.XLNP

Electrical Configuration

Number of contacts Low Voltage

2

Contact Termination Low voltage

PCB - Straight

R (max)

5.7 mOhm

Insert configuration value

0M.511 - SPE - 2 High Speed, Low Voltage (2.5 G BASE-T1 (IEEE 802.3ch))

Footprint IPC Class3 compatibility

Yes

Class3 Productibility Level Compatibility

A (General Design Producibility - Preferred)

Insulator

L: PEEK

Rated current

9 A

Test voltage contact-contact

1.90 kV (DC)

Test voltage contact-shell

1.20 kV (DC)

Contact Dia.

0.7 mm (0.028in)

Number of differentiated pairs (High speed)

1

Protocol

2.5G Base-T1 (2.5Gb/s)

Gender

Standard

Form & Material

Shell style / Model id

HE - Fixed receptacle, nut fixing for printed circuit, watertight

Socket / Receptacle

Fixed Panel Rear Mounted

Housing material

Aluminium (nickel plated [SAE AMS QQ N 290], anthracite color) shell and nut, other pieces bronze/brass

Locking system

Ratchet

Keying

N: 3 keys (beta=165, gamma=30, plug: male contacts, receptacle: female contacts)

Colour

Grey

Variant

Watertight unmated (connector to device)

Environment

Technical domain

Motorsport, Security and Defence, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP68

Endurance

3000 mating cycles

Temperature range

-20°C / +80°C

EMI Shielding EIA 364-66A

>= 80 dB (1 GHz), >=70 dB (3 GHz), >= 58 dB (6 GHz), >= 40 dB (10 GHz)

Gunfire vibration

25 Hz - 2000 Hz, 3 axis (Apache helicopter)

Humidity (max)

21 days at 95%

Lighting strike EIA 364-76

10K amps - 6 times

Shock Resistance

300 g [ 3 ms]

Vibration-Random

37.8 g rms - 3 axes, 4 hr amb [50 Hz - 2000 Hz]

Vibration-Sine

30 g, 3 axes, 12 hr [10 Hz - 2000 Hz]

Salt Spray Corrosion

max. 48 hr
