- Plug
- Straight
- Termination
- Crimp
- Jacket cable outside diameter [mm]
- 7.40 - 24.20 mm
Electrical Configuration
- Number of contacts Low Voltage
- 68
- Contact Termination Low voltage
- PCB - Straight

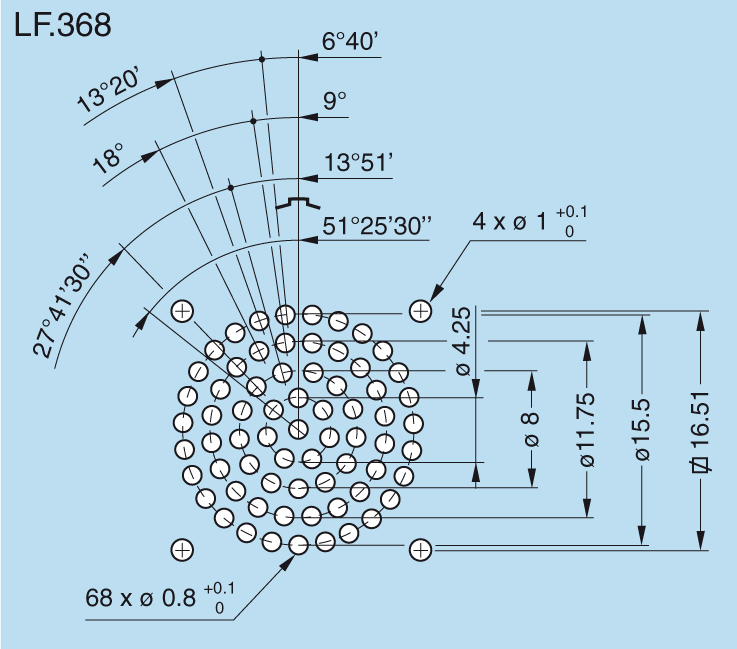

- Footprint IPC Class3 compatibility
- Yes
- Class3 Productibility Level Compatibility
- A (General Design Producibility - Preferred)
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Rated current
- 2.5 A
- Gender
- Standard
Form & Material
- Shell style / Model id
- HE - Fixed receptacle, nut fixing, for printed circuit (back panel mounting)
- Socket / Receptacle
- Fixed Panel Rear Mounted
- Housing material
- Brass (chrome plated [SAE AMS 2460]) shell and nut, other pieces brass
- Locking system
- Push-pull
- Keying
- 3 keys (alpha=42, gamma=30, plug: male contacts, receptacle: female contacts)
- Variant
- Watertight unmated (connector to device)
- Weight
- 32.73 g
- Panel Drill Hole
- M27
Environment
- Technical domain
- Motorsport, Security and Defence
- Environmental sealing (IP rating)
- IP68
- Endurance
- 5000 mating cycles
- Temperature range
- -50°C / +150°C
- Climatic Category
- 50/175/21 (Aluminium shell)
- Humidity (max)
- <=95% [at 60 deg C /140 F]
- Shock Resistance
- 100 g [ 6 ms]
- Vibration
- 15 g [10 Hz - 2000 Hz]
- Pressure
- 5 bars
- Salt Spray Corrosion
- >1000 hr
Technical plans
Dimensions
| A | B | e | E | H | L | M | P | S1 | S2 | X | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm. | 32 | 32 | M27x1 | 6.4 | 16.51 | 26.3 | 5 | 20 | 25 | 28 | 23.5 |
| in. | 1.26 | 1.26 | 0.25 | 0.65 | 1.04 | 0.2 | 0.79 | 0.98 | 1.1 | 0.93 |
CAD
F - Rugged Push-Pull
Main Features
- Harsh environments (IP67)
- Push-Pull latching system
- Strong resistance to shocks and vibrations
- Multi-Keying system with color coding
- Light & compact construction
- Stealth Anthracite coating
