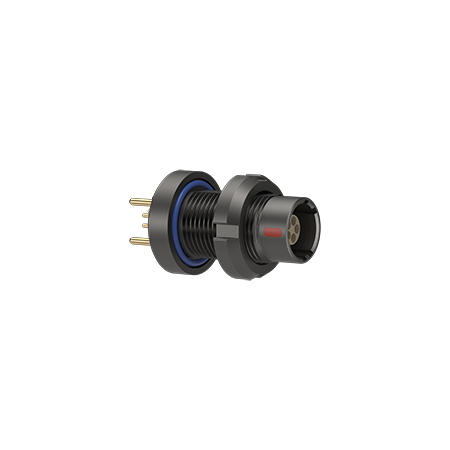

- Socket / Receptacle
- Fixed Panel Rear Mounted
- Termination
- PCB - Straight
- Contacts
- 6 Low Voltage
Standard
Electrical Configuration
- Number of contacts Low Voltage
- 6
- Contact Termination Low voltage
- Solder
- R (max)
- 8 mOhm (at 1000 cycles)
- Insert configuration value
- DD.306 - 6 Low Voltage
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Rated current
- 1.5 A
- Vtest (contact-contact)
- 0.6 kV (DC)
- Vtest (contact-shell)
- 0.8 kV (DC)
- Max. Solid Conductor
- 0.05 mm² (AWG 30)
- Max. Stranded Conductor
- 0.09 mm² (AWG 28)
- Bucket Dia.
- 0.4 mm (0.016in)
- Contact Dia.
- 0.35 mm (0.01in)
- Wire Size/AWG
- 34 - 28
- Gender
- Standard
Form & Material
- Shell style / Model id

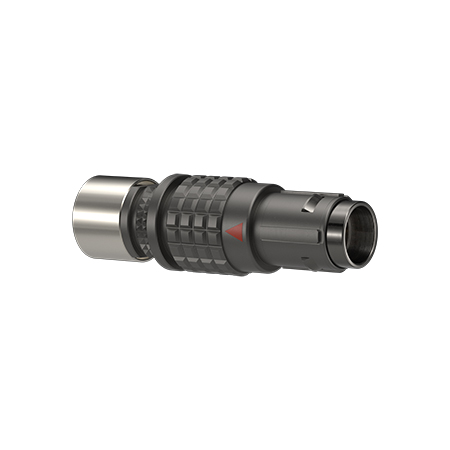

- FG - Straight plug Push-Pull, overmolded cable
- Plug
- Straight
- Housing material
- Brass (Nickel plated [SAE AMS QQ N 290], anthracite color) shell and other metallic parts
- Locking system
- Push-pull
- Keying
- R: 5 keys (alpha=95, beta=100, gamma=25, delta=40, plug: male contacts, receptacle: female contacts)
- Colour
- Anthracite
- Weight
- 7.135 g
Environment
- Technical domain
- Security and Defence, Transportation, Aerospace and UAV
- Environmental sealing (IP rating)
- IP68
- Endurance
- 5000 mating cycles
- Temperature range
- -40°C / +90°C (Overmolding)
- Climatic Category
- 50/175/21
- F ret (max)
- 400 N
- F ret (min)
- 100 N
- Humidity (max)
- <=95% [at 60 °C /140 F]
- Shielding (min)
- >= 75 dB (10 MHz)
- Shielding (min)
- >= 40 dB (1 GHz)
- Shock Resistance
- 50 g [ 11 ms]
- Vibration
- 37.8 g [10 Hz - 2000 Hz]
- Salt Spray Corrosion
- 1000 hr
Cable fixation
- Cable termination protection
- Potting
- Fixation type
- Crimp / Overmolding
CAD
D - Rugged Miniature Push-Pull
Main Features
- IP68 (20m/2h) unmated
- Push-Pull and Break-away
- Easy integration
- Robust 5-spur keying
- Tested according to MIL-STD-810H
- Compact & miniature design
Recommended
- Model description
- Cap for plug
Standard
Cable assembly service
Receive the same high quality cable assemblies that you've come to expect from LEMO Push-Pull connectors.
